Quad 14-bit Digital-to-Analog Converter (DAC) featuring a 100 kS/s conversion rate and parallel interface. This LC2MOS device offers 14-bit resolution across four independent DAC channels. It operates with a dual supply voltage range of 14.25V to 15.75V and provides a voltage output. The component is housed in a PLCC package with Tin, Lead contact plating and has a maximum power dissipation of 465mW.
PackagePLCC
Power465mW
Quick Jump:
Technical Specifications
Analog Devices AD7835AP technical specifications.
General
Package/Case
PLCC
Contact Plating
Tin, Lead
Conversion Rate
100KS/s
Differential Output
No
Dual Supply Voltage
15V
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
15.75V
Min Dual Supply Voltage
14.25V
Max Input Voltage
14V
Min Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
5V
Min Output Voltage
14V
Max Power Dissipation
465mW
Max Supply Voltage
15.75V
Min Supply Voltage
14.25V
Number of Bits
14
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
27
Packaging
Rail/Tube
Power Dissipation
465mW
Resolution
14b
RoHS Compliant
No
Sampling Rate
100KS/s
Settling Time
10us
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7835AP Datasheet
Download the complete datasheet for Analog Devices AD7835AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

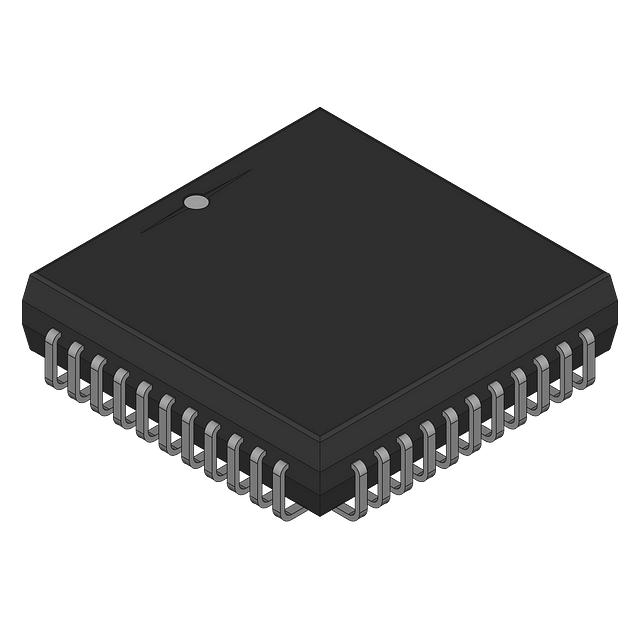

Product Images
