Technical Specifications
Analog Devices AD7835AP-REEL technical specifications.
General
| Package/Case | PLCC |
| Conversion Rate | 100KS/s |
| Dual Supply Voltage | 15V |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 15.75V |
| Min Dual Supply Voltage | 14.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Bits | 14 |
| Number of Channels | 4 |
| Output Type | Voltage |
| Packaging | Tape and Reel |
| Power Dissipation | 465mW |
| Resolution | 14b |
| RoHS Compliant | No |
| Settling Time | 10us |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD7835AP-REEL Datasheet
Download the complete datasheet for Analog Devices AD7835AP-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

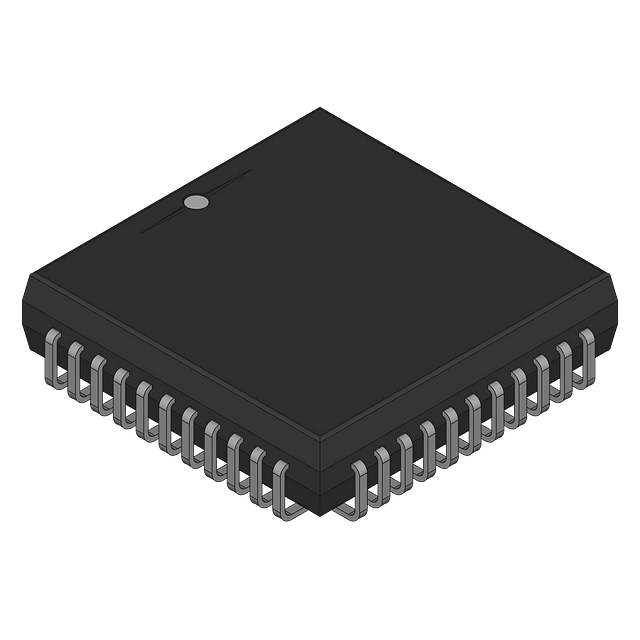

Product Images
