Dual 12-bit Analog-to-Digital Converter (ADC) featuring simultaneous sampling at 250 kSPS per channel. Offers 4 single-ended analog inputs with a bipolar polarity, supporting an input voltage range of 2.375V to 2.625V. Achieves 1 LSB differential and integral nonlinearity, with a signal-to-noise ratio of 71dB. Packaged in SSOP, this component operates from -40°C to 85°C with a typical power consumption of 60mW. Features a parallel interface for data output.
PackageSSOP
PolarityBipolar
Power60mW
Quick Jump:
Technical Specifications
Analog Devices AD7862ARS-3 technical specifications.
General
Package/Case
SSOP
Differential Nonlinearity
1LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
2.625V
Min Input Voltage
2.375V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
75mW
Number of A/D Converters
2
Number of Analog Inputs
4
Number of Bits
12
Number of Channels
4
Number of Converters
2
Number of Inputs
4
Package Quantity
47
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
60mW
Power Dissipation
75mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
250KS/s
Signal to Noise Ratio (SNR)
71dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7862ARS-3 Datasheet
Download the complete datasheet for Analog Devices AD7862ARS-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

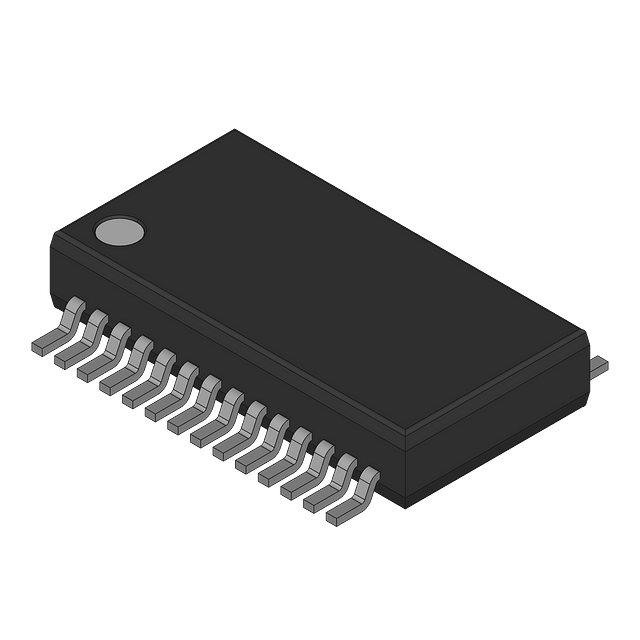

Product Images
