Dual 12-bit Analog-to-Digital Converter (ADC) offering simultaneous sampling at 250 kSPS per channel. Features 1 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) with a Signal-to-Noise Ratio (SNR) of 71dB. Supports four single-ended analog inputs with a voltage range of 2.375V to 2.625V. Operates across a temperature range of -40°C to 85°C, with a typical power consumption of 60mW. Packaged in SSOP and supplied on tape and reel.
PackageSSOP
PolarityBipolar
Power60mW
Quick Jump:
Technical Specifications
Analog Devices AD7862ARSZ-10REEL technical specifications.
General
Package/Case
SSOP
Differential Nonlinearity
1LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
2.625V
Min Input Voltage
2.375V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
75mW
Number of A/D Converters
2
Number of Analog Inputs
4
Number of Bits
12
Number of Channels
4
Number of Converters
2
Number of Inputs
4
Package Quantity
1500
Packaging
Tape and Reel
Polarity
Bipolar
Power Consumption
60mW
Power Dissipation
75mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
250KS/s
Signal to Noise Ratio (SNR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7862ARSZ-10REEL Datasheet
Download the complete datasheet for Analog Devices AD7862ARSZ-10REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

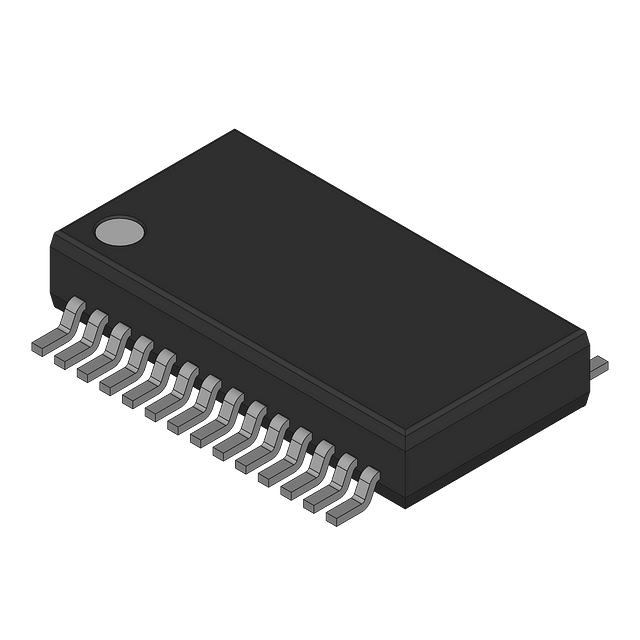

Product Images
