12-bit, 4-channel simultaneous sampling Analog-to-Digital Converter (ADC) featuring a 520 kS/s sampling rate and 78dB Signal-to-Noise Ratio (SNR). This general-purpose IC offers a 1LSB Integral Nonlinearity (INL) and 0.9LSB Differential Nonlinearity (DNL), with a full-scale error of 3LSB. Operating from a 5V supply, it consumes 90mW of power and supports single-ended inputs up to 2.625V. Packaged in a 10mm x 10mm x 2mm QFP, this RoHS compliant component operates across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7864ASZ-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

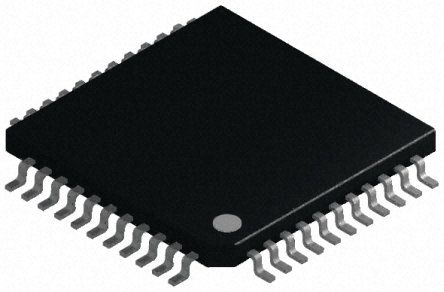

Analog Devices AD7864ASZ-1 technical specifications.
| Package/Case | QFP |
| Converter Type | GENERAL PURPOSE |
| Differential Nonlinearity | 0.9LSB |
| Full Scale Error | 3LSB |
| Height | 2mm |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Voltage | 2.625V |
| Min Input Voltage | 2.375V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 120mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 4 |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 90mW |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 520KS/s |
| Signal to Noise Ratio (SNR) | 78dB |
| Supply Current | 24mA |
| Supply Type | Analog, Digital |
| Width | 10mm |
| RoHS | Compliant |
