14-bit, 4-channel simultaneous sampling Analog-to-Digital Converter (ADC) with a 350 kS/s sampling rate. Features 1.5 LSB Integral Nonlinearity (INL) and 1 LSB Differential Nonlinearity (DNL). Operates with a 5V supply voltage and offers a 80dB Signal-to-Noise Ratio (SNR). Housed in a QFP package, this component supports single-ended input types and a parallel interface. Maximum power dissipation is 160mW.
PackageQFP
Current32mA
PolarityBipolar
Power115mW
Quick Jump:
Technical Specifications
Analog Devices AD7865BSZ-1 technical specifications.
General
Package/Case
QFP
Differential Nonlinearity
1LSB
Height
2mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Contains Lead
Length
10mm
Max Input Voltage
2.625V
Min Input Voltage
2.375V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
160mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
4
Number of Bits
14
Number of Channels
4
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Tray
Polarity
Bipolar
Power Consumption
115mW
Power Dissipation
160mW
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
350KS/s
Signal to Noise Ratio (SNR)
80dB
Supply Current
32mA
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7865BSZ-1 Datasheet
Download the complete datasheet for Analog Devices AD7865BSZ-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

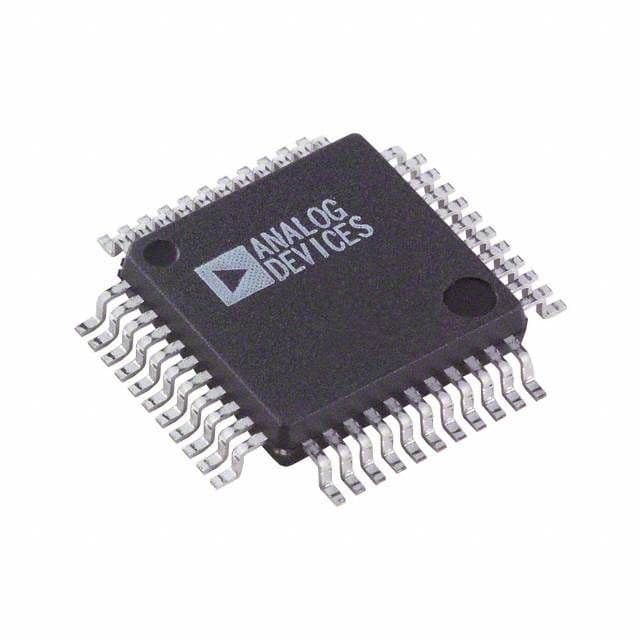

Product Images
