14-bit, single-ended sampling Analog-to-Digital Converter (ADC) with one analog input channel. Features serial and parallel SPI interface compatibility. Operates with a dual supply voltage and offers a maximum input voltage of 6V. Achieves an 83 kS/s sampling rate and an 80dB Signal-to-Noise Ratio (SNR). Housed in a PLCC package for surface mounting, this component operates across a wide temperature range of -55°C to 125°C.
PackagePLCC
MountingSurface Mount
PolarityBipolar
Power50mW
Quick Jump:
Technical Specifications
Analog Devices AD7871JPZ-REEL technical specifications.
General
| Package/Case | PLCC |
| Input Type | SINGLE-ENDED |
| Interface | Serial, Parallel, SPI |
| Lead Free | Contains Lead |
| Max Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 95mW |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 50mW |
| Power Dissipation | 95mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 83KS/s |
| Signal to Noise Ratio (SNR) | 80dB |
| Supply Type | Dual |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7871JPZ-REEL Datasheet
Download the complete datasheet for Analog Devices AD7871JPZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

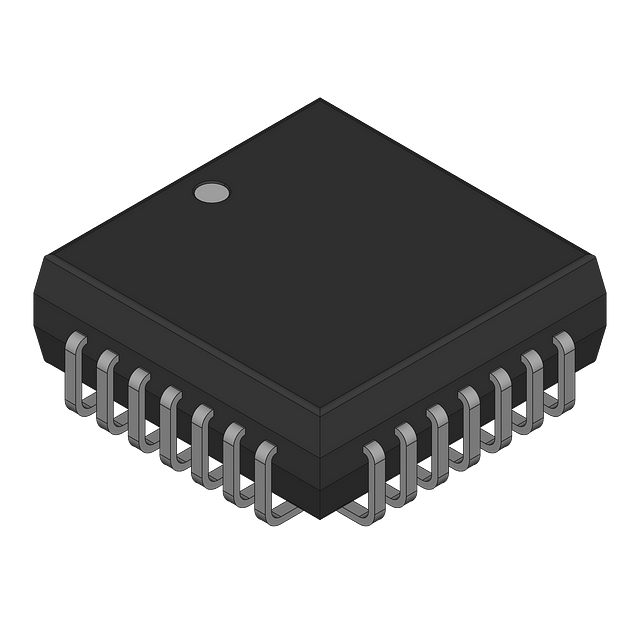

Product Images
