16-bit monolithic analog-to-digital converter (ADC) featuring a 16-bit parallel reading structure. Offers 2 analog inputs with a sampling rate of 166 kS/s and an 82dB signal-to-noise ratio. Operates with a dual supply voltage range of 4.75V to 5.25V, supporting a maximum power dissipation of 325mW. Packaged in a PLCC with tin, matte contact plating, this surface mount component is RoHS compliant and designed for bipolar operation.
PackagePLCC
MountingSurface Mount
PolarityBipolar
Power325mW
Quick Jump:
Technical Specifications
Analog Devices AD7884APZ technical specifications.
General
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Dual Supply Voltage | 5V |
| Height | 4.57mm |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 16.66mm |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 4.75V |
| Max Input Voltage | 3.05V |
| Min Input Voltage | 2.95V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 325mW |
| Max Supply Voltage | 5V |
| Mount | Surface Mount |
| Nominal Supply Current | 25mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 2 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 325mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 166KS/s |
| Signal to Noise Ratio (SNR) | 82dB |
| Supply Type | Dual |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7884APZ Datasheet
Download the complete datasheet for Analog Devices AD7884APZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

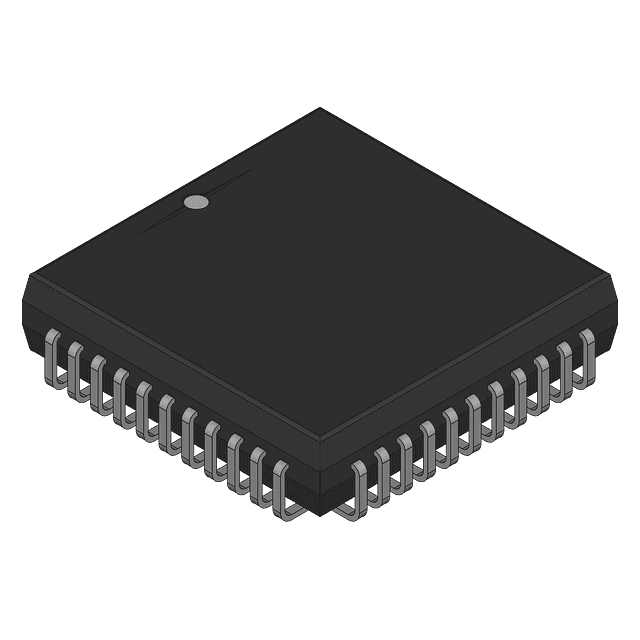

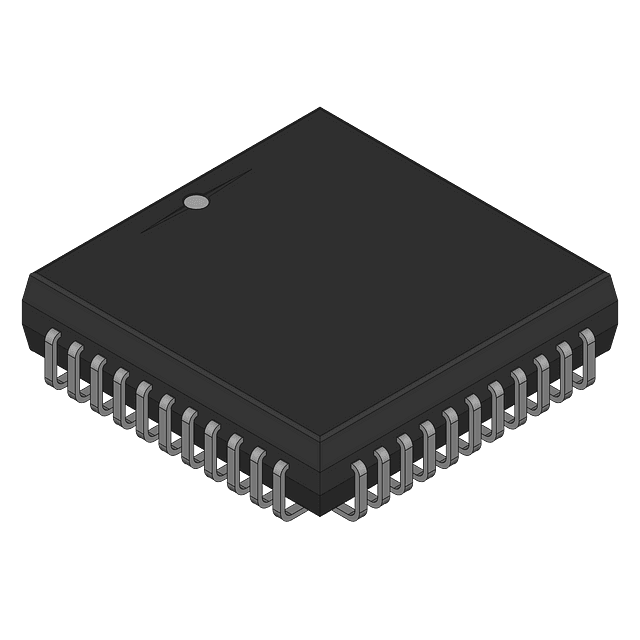

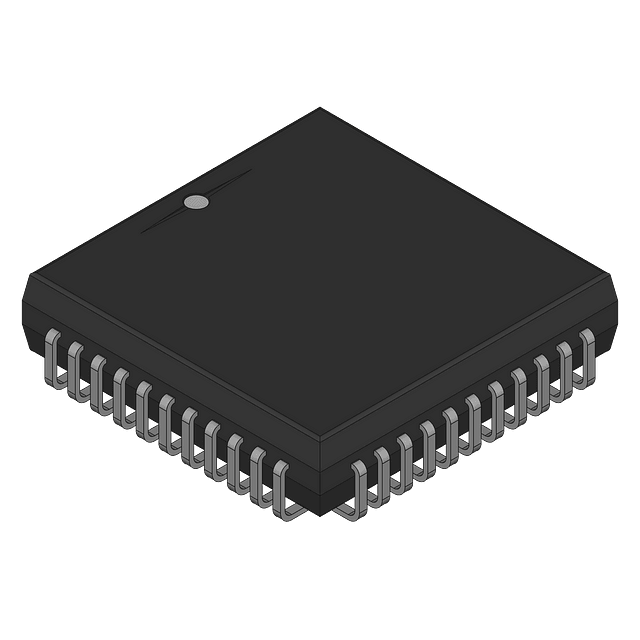

Product Images
