The AD7884BQ is a 16-bit single-channel analog-to-digital converter with a sampling rate of 166,000 samples per second. It operates over a temperature range of -40°C to 85°C and is packaged in a hermetic sealed CDIP-40 package. The device is not RoHS compliant and contains lead. It has a maximum power dissipation of 325mW and a power consumption of 250mW.
PackageCDIP
Power250mW
Quick Jump:
Technical Specifications
Analog Devices AD7884BQ technical specifications.
General
| Package/Case | CDIP |
| Input Type | DIFFERENTIAL |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 325mW |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 9 |
| Packaging | Rail/Tube |
| Power Consumption | 250mW |
| Power Dissipation | 325mW |
| Resolution | 16b |
| RoHS Compliant | No |
| Sampling Rate | 166000S/s |
| Signal to Noise Ratio (SNR) | 82dB |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD7884BQ Datasheet
Download the complete datasheet for Analog Devices AD7884BQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

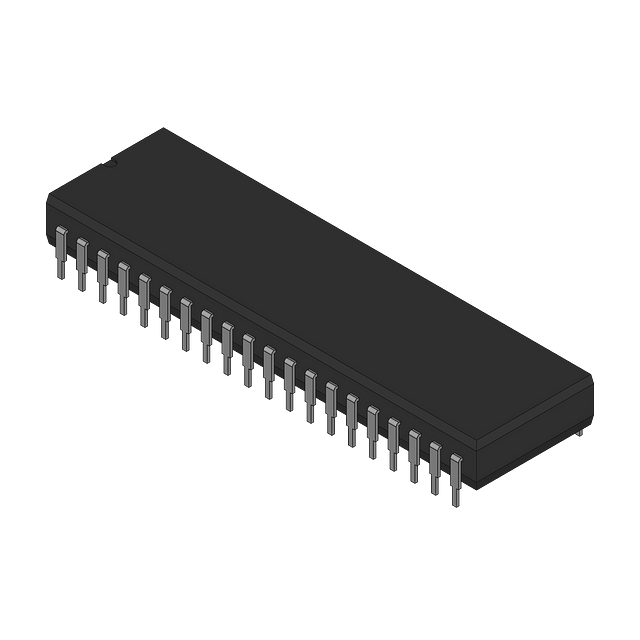

Product Images
