12-Bit, 8-Channel Analog-to-Digital Converter (ADC) with 125 kSPS sampling rate. Features single-ended inputs, SPI interface, and unipolar polarity. Offers 2LSB differential nonlinearity, full-scale error, and integral nonlinearity. Operates from a 2.7V to 5.25V single supply with a maximum power dissipation of 3.5mW. Packaged in a 16-pin TSSOP with tin/lead contact plating.
PackageTSSOP
PolarityUnipolar
Power3.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7888ARU-REEL7 technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Lead
Differential Nonlinearity
2LSB
Full Scale Error
2LSB
Input Capacitance
38pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
SPI
Lead Free
Contains Lead
Max Input Voltage
5.25V
Min Input Voltage
2.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
3.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Inputs
8
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
3.5mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
125KS/s
Signal to Noise Ratio (SNR)
71dB
Supply Type
Single
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7888ARU-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD7888ARU-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

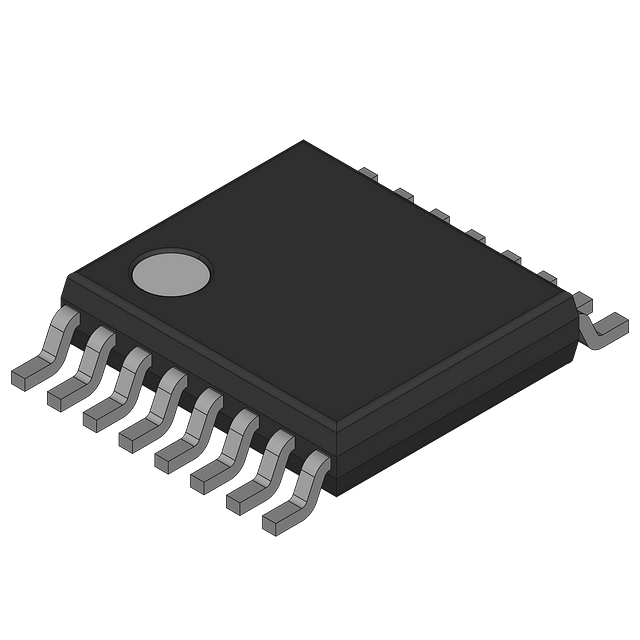

Product Images
