12-bit, single-ended analog-to-digital converter (ADC) with 6 channels and 2 analog inputs. Features I2C, SPI, and 2-wire interfaces, operating from a single supply voltage of 1.6V to 3.6V. Offers a sampling rate of 105 kS/s, with a full-scale error of 4 LSB and integral nonlinearity of 3 LSB. Designed for low voltage touch screen control, with a maximum power dissipation of 866mW and an operating temperature range of -40°C to 85°C. Packaged in tape and reel.
PolarityUnipolar
Power2.3mW
Quick Jump:
Technical Specifications
Analog Devices AD7889-1ACBZ-RL technical specifications.
General
| Contact Plating | Copper, Tin, Silver |
| Full Scale Error | 4LSB |
| Input Capacitance | 30pF |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 3LSB |
| Interface | I2C, SPI, 2-Wire |
| Lead Free | Contains Lead |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 866mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.6V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 2 |
| Number of Channels | 6 |
| Number of Elements | 1 |
| Operating Supply Current | 10nA |
| Operating Supply Voltage | 2.6V |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Dissipation | 2.3mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 105KS/s |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7889-1ACBZ-RL Datasheet
Download the complete datasheet for Analog Devices AD7889-1ACBZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

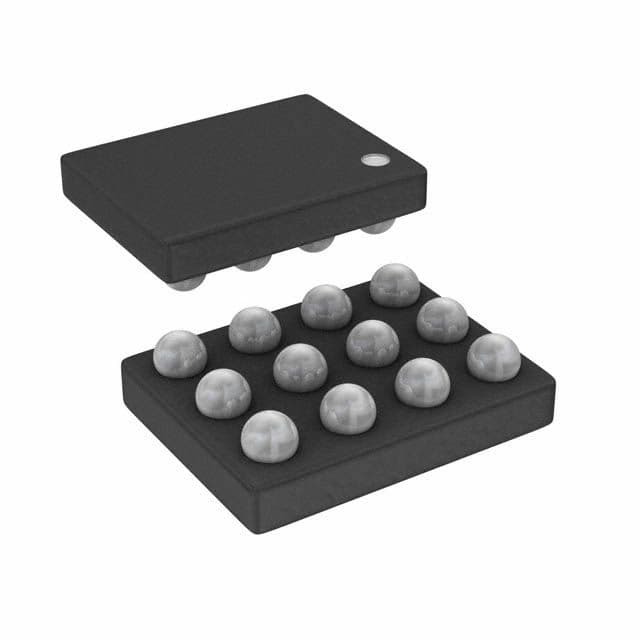

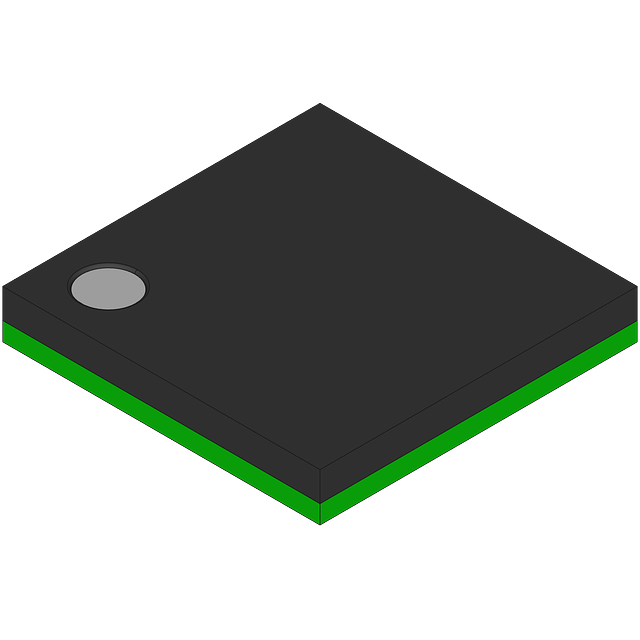

Product Images
