12-bit, single-ended analog-to-digital converter (ADC) designed for resistive touchscreens. Features 2 analog inputs, 6 channels, and a unipolar polarity. Operates with a single supply voltage range of 1.6V to 3.6V, consuming a low 10nA operating supply current. Supports I2C, SPI, and 2-wire interfaces, with a sampling rate of 105 kS/s. Integral nonlinearity is 3 LSB, and full-scale error is 4 LSB. Packaged in tape and reel.
PolarityUnipolar
Power2.3mW
Quick Jump:
Technical Specifications
Analog Devices AD7889-1ACBZ-RL7 technical specifications.
General
Contact Plating
Copper, Tin, Silver
Full Scale Error
4LSB
Input Capacitance
30pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
3LSB
Interface
I2C, SPI, 2-Wire
Lead Free
Contains Lead
Max Input Voltage
3.6V
Min Input Voltage
1.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
866mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.6V
Number of A/D Converters
1
Number of Analog Inputs
2
Number of Channels
6
Operating Supply Current
10nA
Operating Supply Voltage
2.6V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
2.3mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
105KS/s
Supply Type
Single
Touchscreen
Resistive
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7889-1ACBZ-RL7 Datasheet
Download the complete datasheet for Analog Devices AD7889-1ACBZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

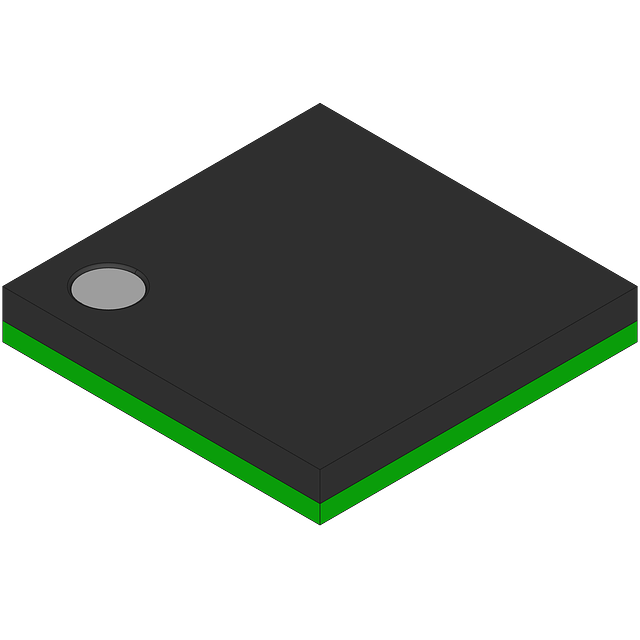

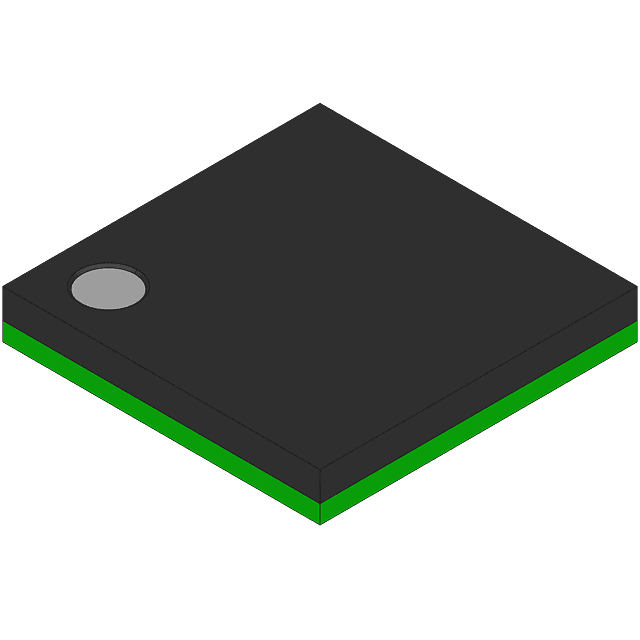

Product Images
