12-bit, 8-channel analog-to-digital converter (ADC) featuring a 500 kS/s sampling rate and 70dB signal-to-noise ratio. Offers true bipolar input with single-ended configuration and a maximum input voltage of 2.625V. Integral and differential nonlinearity are both 1 LSB. Interface options include serial and parallel (5-wire). Packaged in PLCC, this component operates from a single supply and has a maximum power dissipation of 100mW.
PackagePLCC
PolarityBipolar, Unipolar
Power82mW
Quick Jump:
Technical Specifications
Analog Devices AD7891AP-2REEL technical specifications.
General
Package/Case
PLCC
Differential Nonlinearity
1LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Serial, Parallel, 5-WIRE
Lead Free
Contains Lead
Max Input Voltage
2.625V
Min Input Voltage
2.375V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Channels
8
Number of Converters
1
Output Type
TTL
Package Quantity
500
Packaging
Tape and Reel
Polarity
Bipolar, Unipolar
Power Consumption
82mW
Power Dissipation
100mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
500KS/s
Signal to Noise Ratio (SNR)
70dB
Supply Type
Single
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7891AP-2REEL Datasheet
Download the complete datasheet for Analog Devices AD7891AP-2REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

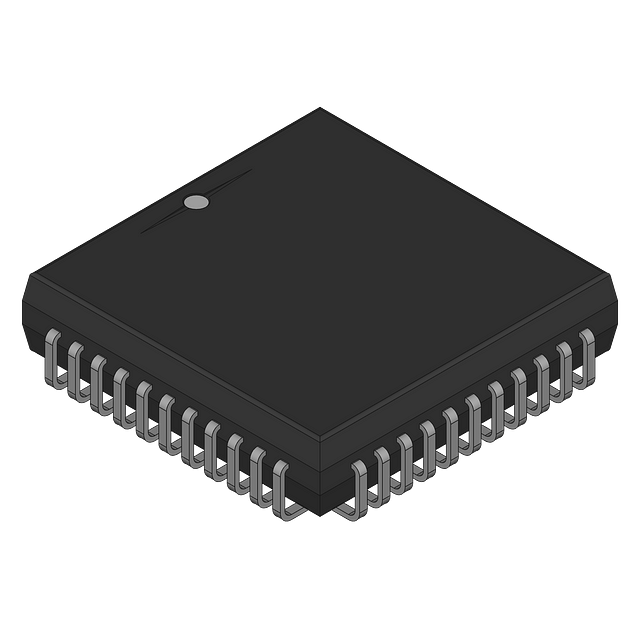

Product Images
