Dual-channel audio amplifier IC featuring a 600MHz -3dB bandwidth and a 1200V/µs slew rate. This bipolar technology component offers 2 amplifiers with a voltage gain of 119dB and an output current of 70mA per channel. Operating from a dual supply voltage range of 3V to 6V, it boasts a 75dB PSRR and 49dB CMRR. The amplifier is housed in a PDIP-8 plastic package with tin, matte contact plating.
PackageN
Current5.75mA
Power1.3W
Quick Jump:
Technical Specifications
Analog Devices AD8002ANZ technical specifications.
General
-3db Bandwidth
600MHz
Bandwidth
600MHz
Package/Case
N
Common Mode Rejection Ratio
49dB
Contact Plating
Tin, Matte
Dual Supply Voltage
5V
Height
3.43mm
Input Bias Current
3uA
Input Capacitance
1.5pF
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Length
9.27mm
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.3W
Max Supply Voltage
12V
Min Supply Voltage
6V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
10mA
Operating Supply Voltage
9V
Output Current
70mA
Output Current per Channel
70mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
1.3W
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
11.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1200V/µs
Supply Current
5.75mA
Technology
BIPOLAR
Voltage Gain
119dB
Width
7.24mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8002ANZ Datasheet
Download the complete datasheet for Analog Devices AD8002ANZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

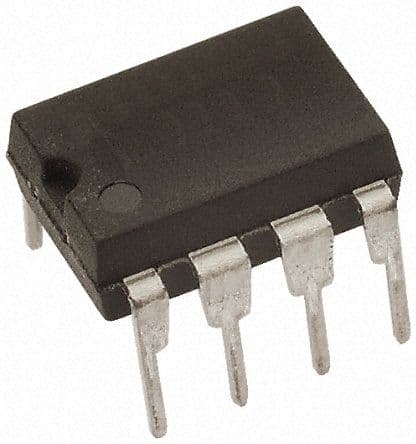

Product Images
