Single, rail-to-rail I/O operational amplifier featuring an 80MHz bandwidth and 35V/µs slew rate. This amplifier operates from a 2.7V to 12V supply range with a typical quiescent current of 900µA. Key specifications include a 40MHz gain bandwidth product, 1.5mV input offset voltage, and 450nA input bias current. The device offers 82dB voltage gain and 15mA output current per channel, with a 90dB CMRR and 86dB PSRR. Packaged in a 1-amplifier configuration, it operates across a -40°C to 85°C temperature range.
PackageN
Current900uA
Power1.3W
Quick Jump:
Technical Specifications
Analog Devices AD8031ANZ technical specifications.
General
-3db Bandwidth
80MHz
Bandwidth
80MHz
Package/Case
N
Common Mode Rejection Ratio
90dB
Contact Plating
Tin, Matte
Dual Supply Voltage
5V
Gain Bandwidth Product
40MHz
Height
3.43mm
Input Bias Current
450nA
Input Capacitance
1.6pF
Input Offset Voltage (Vos)
1.5mV
Lead Free
Contains Lead
Length
9.27mm
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.3W
Max Supply Voltage
12V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
900uA
Operating Supply Voltage
5V
Output Current
15mA
Output Current per Channel
15mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
1.3W
Power Supply Rejection Ratio (PSRR)
86dB
Quiescent Current
900uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
125ns
Slew Rate
35V/µs
Supply Current
900uA
Technology
BIPOLAR
Voltage Gain
82dB
Width
7.24mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8031ANZ Datasheet
Download the complete datasheet for Analog Devices AD8031ANZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

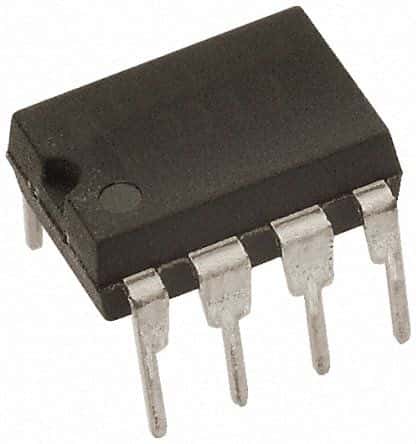

Product Images
