Dual operational amplifier featuring 80MHz bandwidth and 80V/µs slew rate. This FET-input amplifier offers 1.5pA input bias current and 2mV input offset voltage. Operating from a 2.5V to 12V dual supply or 5V to 24V single supply, it delivers 60mA output current per channel. Packaged in an 8-lead SOT-23, this RoHS compliant component boasts 100dB CMRR and PSRR.
PackageSOT-23-8
Current7mA
Quick Jump:
Technical Specifications
Analog Devices AD8034ARTZ-REEL7 technical specifications.
General
-3db Bandwidth
80MHz
Bandwidth
80MHz
Package/Case
SOT-23-8
Common Mode Rejection Ratio
100dB
Contact Plating
Gold
Dual Supply Voltage
9V
Gain Bandwidth Product
40MHz
Height
1.15mm
Input Bias Current
1.5pA
Input Capacitance
2.3pF
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Length
2.9mm
Max Dual Supply Voltage
12V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
24V
Min Supply Voltage
5V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
7mA
Output Current
5mA
Output Current per Channel
60mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
100dB
Quiescent Current
3.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FastFET™
Settling Time
90ns
Slew Rate
80V/µs
Supply Current
7mA
Technology
FET
Voltage Gain
92dB
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8034ARTZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD8034ARTZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

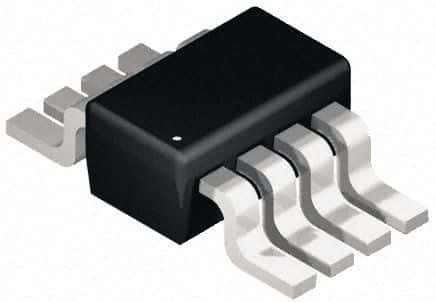

Product Images
