Single, rail-to-rail operational amplifier featuring a 320MHz -3dB bandwidth and 300MHz bandwidth. Delivers a 650V/µs slew rate and 90MHz gain bandwidth product. Operates from 2.7V to 8V supply voltage with a nominal supply current of 9.5mA. Packaged in a compact SOT-23 with tin, matte contact plating.
PackageSOT-23
Power500mW
Quick Jump:
Technical Specifications
Analog Devices AD8061ARTZ-R2 technical specifications.
General
| -3db Bandwidth | 320MHz |
| Bandwidth | 300MHz |
| Package/Case | SOT-23 |
| Common Mode Rejection Ratio | 62dB |
| Contact Plating | Tin, Matte |
| Gain Bandwidth Product | 90MHz |
| Height | 1.15mm |
| Input Bias Current | 350nA |
| Input Capacitance | 1pF |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 8V |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 9.5mA |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 6.8mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 50mA |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Power Supply Rejection Ratio (PSRR) | 72dB |
| Quiescent Current | 9.5mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 650V/µs |
| Voltage Gain | 90dB |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8061ARTZ-R2 Datasheet
Download the complete datasheet for Analog Devices AD8061ARTZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

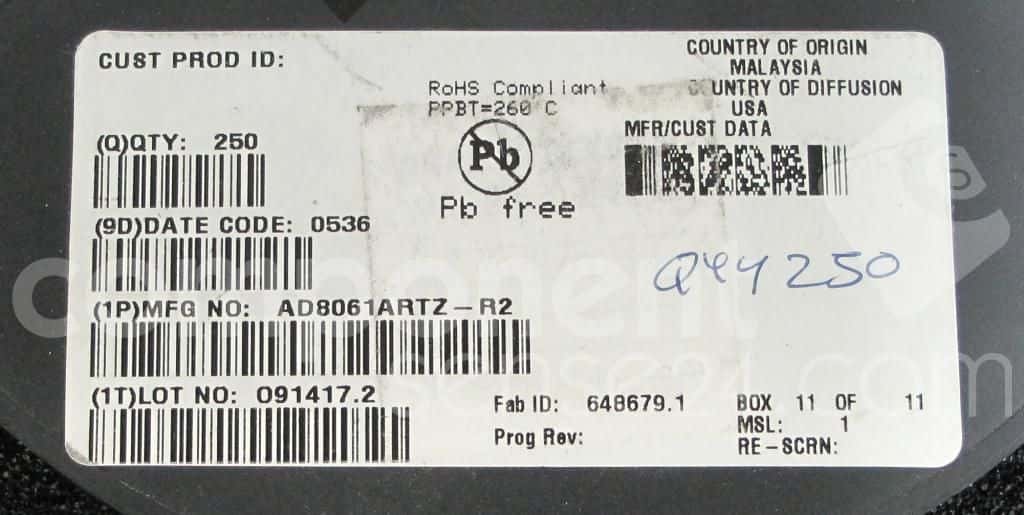

Product Images
