High-performance, single-channel operational amplifier featuring a 145MHz -3dB bandwidth and 180V/µs slew rate. This FastFET™ amplifier offers a 60MHz gain bandwidth product, 113dB voltage gain, and 30mA output current per channel. Operating from a minimum dual supply of 2.5V up to a maximum of 12V (or 5V to 24V single supply), it boasts a low input bias current of 2pA and an input offset voltage of 1.5mV. Packaged in a compact SOT-23 with tin, matte contact plating, this RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackageSOT-23
Quick Jump:
Technical Specifications
Analog Devices AD8065ARTZ-R2 technical specifications.
General
| -3db Bandwidth | 145MHz |
| Bandwidth | 145MHz |
| Package/Case | SOT-23 |
| Common Mode Rejection Ratio | 100dB |
| Contact Plating | Tin, Matte |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 60MHz |
| Height | 1.15mm |
| Input Bias Current | 2pA |
| Input Capacitance | 2.1pF |
| Input Offset Voltage (Vos) | 1.5mV |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Max Dual Supply Voltage | 12V |
| Min Dual Supply Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Nominal Supply Current | 7.4mA |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 7.4mA |
| Operating Supply Voltage | 18V |
| Output Current per Channel | 30mA |
| Packaging | Cut Tape |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Quiescent Current | 7.4mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FastFET™ |
| Settling Time | 55ns |
| Slew Rate | 180V/µs |
| Voltage Gain | 113dB |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8065ARTZ-R2 Datasheet
Download the complete datasheet for Analog Devices AD8065ARTZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

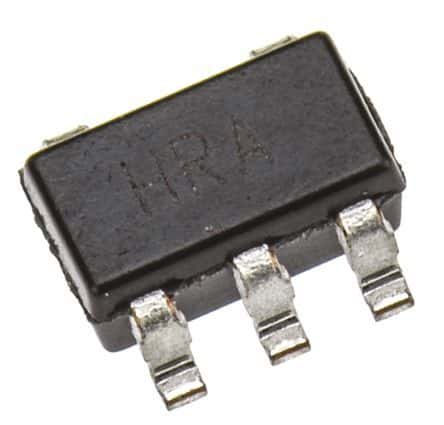

Product Images
