This differential receiver amplifier offers a 200MHz -3dB bandwidth and a 200MHz gain bandwidth product, ideal for high-speed analog signal processing. Featuring a 1060V/µs slew rate and 20ns settling time, it ensures rapid signal response. The amplifier operates with a dual supply voltage range of 2.25V to 12.6V, with a maximum supply voltage of 25.2V. It boasts a high 86dB common mode rejection ratio and a 4MR input resistance. Packaged in an MSOP with dimensions of 3mm x 3mm x 0.85mm, this RoHS compliant component is designed for efficient integration.
PackageMSOP
Current13mA
Quick Jump:
Technical Specifications
Analog Devices AD8129ARMZ technical specifications.
General
-3db Bandwidth
200MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
200MHz
Package/Case
MSOP
Common Mode Rejection Ratio
86dB
Dual Supply Voltage
9V
Gain Bandwidth Product
200MHz
Height
0.85mm
Input Bias Current
2uA
Input Offset Voltage (Vos)
200uV
Input Resistance
4MR
Lead Free
Contains Lead
Length
3mm
Logic Function
Receiver
Max Dual Supply Voltage
12.6V
Min Dual Supply Voltage
2.25V
Max Input Voltage
12.6V
Min Input Voltage
2.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
25.2V
Min Supply Voltage
4.5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
10.8mA
Operating Supply Voltage
12.6V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
20ns
Slew Rate
1060V/µs
Supply Current
13mA
Unity Gain Bandwidth Product
70MHz
Voltage Gain
86dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8129ARMZ Datasheet
Download the complete datasheet for Analog Devices AD8129ARMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

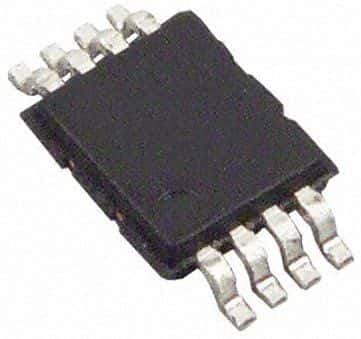

Product Images
