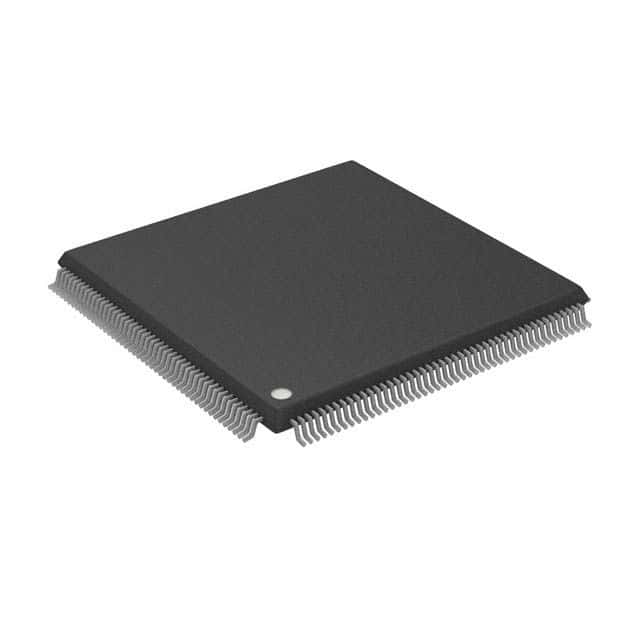

The AD8150ASTZ is a dual supply interface IC from Analog Devices, packaged in a 20 X 20 MM, PLASTIC, LQFP-184. It operates over a temperature range of 0°C to 85°C and has a nominal supply current of 400mA. The device is RoHS compliant and has a power dissipation of 82.5mW. It is available in a tray packaging and has a lead free status of contains lead.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD8150ASTZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD8150ASTZ technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Control Interface | PARALLEL |
| Data Rate | 1.5Gbps |
| Dual Supply Voltage | 5V |
| Height | 1.45mm |
| Independent Circuits | 1 |
| Lead Free | Contains Lead |
| Length | 20.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3.3V |
| Nominal Supply Current | 400mA |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 82.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | XStream™ |
| Supply Type | Single, Dual |
| Width | 20.2mm |
| RoHS | Compliant |
