Analog Devices
AD8155ACPZ
Digital Crosspoint Single 4x4 6.5Gbps 2:1 Mux/1:2 Demux Switch 64-Pin LFCSP EP Tray
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD8155ACPZ technical specifications.
General
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Data Rate | 6.5Gbps |
| Height | 0.95mm |
| Independent Circuits | 1 |
| Lead Free | Contains Lead |
| Length | 9mm |
| Max Dual Supply Voltage | 3.6V |
| Min Dual Supply Voltage | 2.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 1.8V |
| Nominal Supply Current | 850mA |
| Number of Circuits | 2 |
| Operating Supply Current | 850mA |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | XStream™ |
| Supply Type | Dual, Single |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8155ACPZ Datasheet
Download the complete datasheet for Analog Devices AD8155ACPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

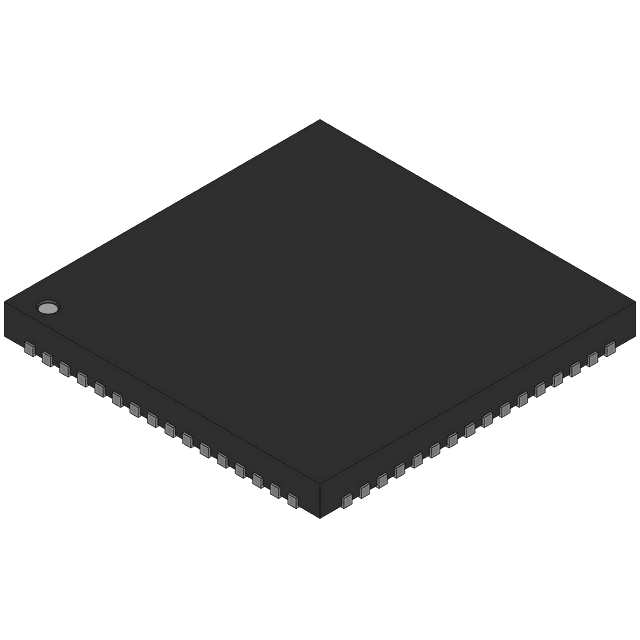

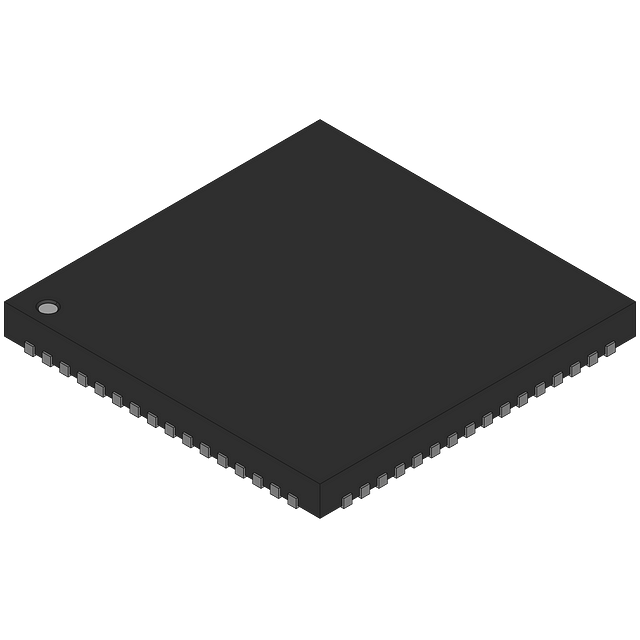

Product Images
