Technical Specifications
Analog Devices AD8156ABCZ technical specifications.
General
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Data Rate | 6.25Gbps |
| Height | 1.31mm |
| Independent Circuits | 1 |
| Lead Free | Contains Lead |
| Length | 8.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 141mA |
| Operating Supply Current | 120mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 175mW |
| RoHS Compliant | Yes |
| Series | XStream™ |
| Supply Type | Single |
| Width | 8.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8156ABCZ Datasheet
Download the complete datasheet for Analog Devices AD8156ABCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

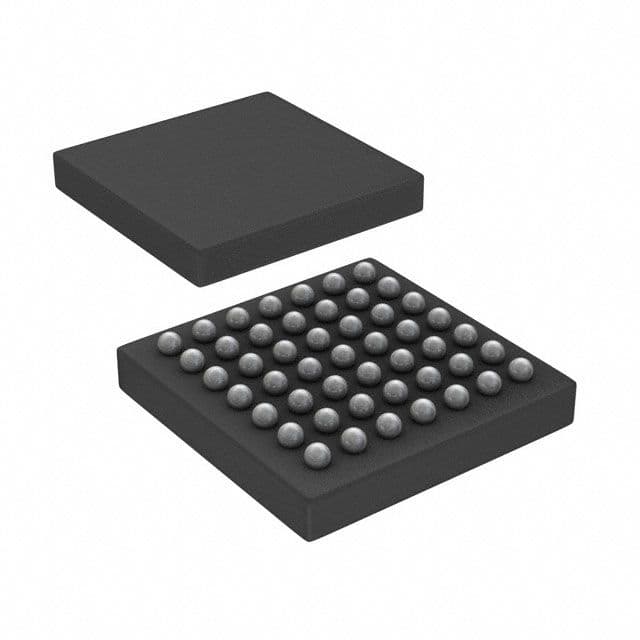

Product Images
