Dual-channel, JFET input instrumentation amplifier featuring rail-to-rail output. Achieves 1.5MHz -3dB bandwidth and 800kHz bandwidth with a 2V/µs slew rate. Offers 86dB common mode rejection ratio and 300µV input offset voltage. Operates from a minimum supply voltage of 2.25V (dual) or 4.5V (single) up to 18V (dual) or 36V (single). Low input bias current of 25pA and 750µA quiescent current. Available in a VQFN package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD8224HACPZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

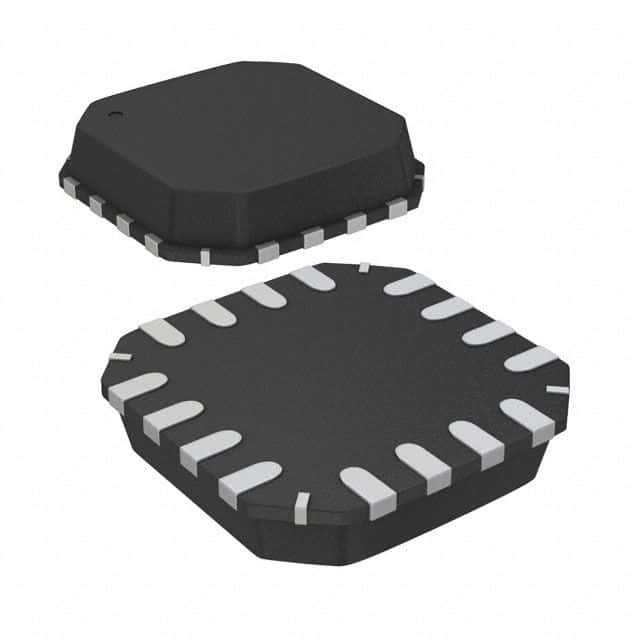

Analog Devices AD8224HACPZ-R7 technical specifications.
| -3db Bandwidth | 1.5MHz |
| Bandwidth | 800kHz |
| Package/Case | VQFN |
| Common Mode Rejection Ratio | 86dB |
| Contact Plating | Tin, Matte |
| Input Bias Current | 25pA |
| Input Offset Voltage (Vos) | 300uV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 750uA |
| Output Current per Channel | 15mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 750uA |
| RoHS Compliant | Yes |
| Slew Rate | 2V/µs |
| Supply Current | 750uA |
| Voltage Gain | 60dB |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD8224HACPZ-R7 to view detailed technical specifications.
