AD8231ACPZ-WP
1Ch Instrumentation Amp, 2.7MHz BW, 100dB CMRR, 15uV Vos, 500pA Ib, LFCSP
Zero drift, digitally programmable instrumentation amplifier featuring a 2.7MHz bandwidth and 7MHz gain bandwidth product. Offers 100dB common mode rejection ratio and 100dB power supply rejection ratio. Input offset voltage is 15µV with 500pA input bias current and 10GΩ input resistance. Operates from a dual supply voltage range of 1.5V to 3V or a single supply of 3V to 6V, with a maximum operating temperature of 125°C. Surface mountable in an LFCSP EP package.
PackageLFCSP EP
Current4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8231ACPZ-WP technical specifications.
General
Bandwidth
2.7MHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
100dB
Contact Plating
Tin, Matte
Dual Supply Voltage
2.5V
Gain Bandwidth Product
7MHz
Height
0.95mm
Input Bias Current
500pA
Input Offset Voltage (Vos)
15uV
Input Resistance
10GR
Lead Free
Contains Lead
Length
4mm
Max Dual Supply Voltage
3V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
5mA
Max Supply Voltage
6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
2
Number of Elements
1
Operating Supply Current
5mA
Operating Supply Voltage
5V
Output Current per Channel
70mA
Package Quantity
64
Packaging
Tray
Power Supply Rejection Ratio (PSRR)
100dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1.1V/µs
Supply Current
4mA
Unity Gain Bandwidth Product
7MHz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8231ACPZ-WP Datasheet
Download the complete datasheet for Analog Devices AD8231ACPZ-WP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

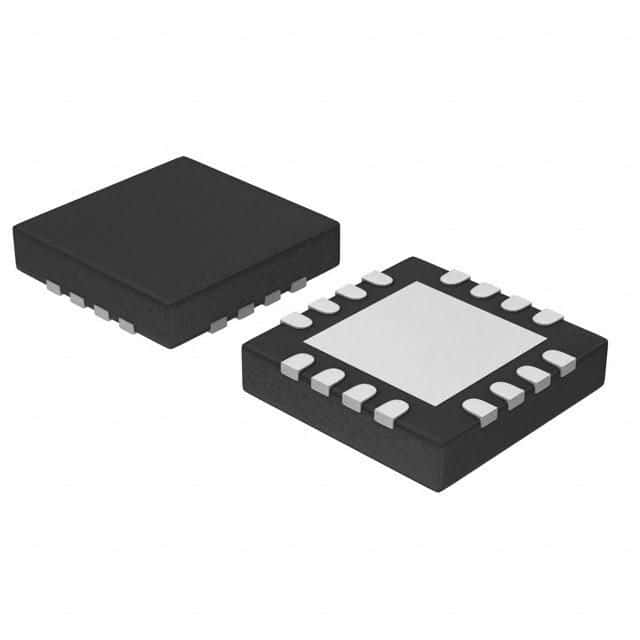

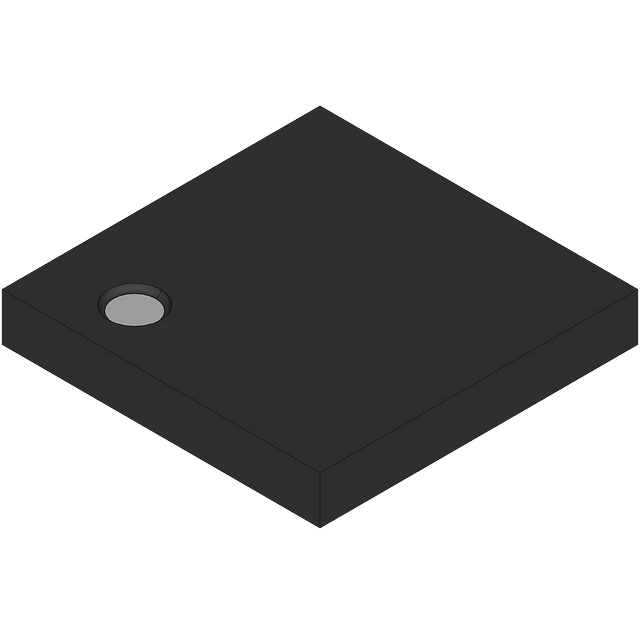

Product Images
