Micropower instrumentation amplifier featuring a 1-channel, 2-amplifier circuit. Achieves 110dB common mode rejection ratio with a 23kHz -3dB bandwidth and 9kHz bandwidth. Operates from 1.8V to 5.5V supply with a low 40µA operating supply current. Offers 25µV input offset voltage and 1pA input bias current. Surface mount WLCSP package with copper, tin, and silver contact plating.
Current40uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8235ACBZ-P7 technical specifications.
General
| -3db Bandwidth | 23kHz |
| Bandwidth | 9kHz |
| Common Mode Rejection Ratio | 110dB |
| Contact Plating | Copper, Tin, Silver |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 25uV |
| Input Resistance | 440GR |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Amplifiers | 2 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Operating Supply Current | 40uA |
| Output Current per Channel | 55mA |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.009V/µs |
| Supply Current | 40uA |
| Voltage Gain | 46.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8235ACBZ-P7 Datasheet
Download the complete datasheet for Analog Devices AD8235ACBZ-P7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

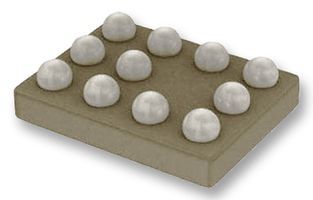

Product Images
