Precision instrumentation amplifier featuring three internal amplifiers for single-channel signal processing. Offers a 1.2MHz -3dB bandwidth and 750kHz bandwidth, with a 1MHz gain bandwidth product. Achieves a high 140dB common mode rejection ratio and 60dB voltage gain. Operates from a 2.3V to 36V supply voltage with a low 2.3mA supply current. Features 500pA input bias current and 120µV input offset voltage, with 100GΩ input resistance. Packaged in VQFN for surface mounting.
PackageVQFN
Current2.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8295ACPZ-R7 technical specifications.
General
-3db Bandwidth
1.2MHz
Bandwidth
750kHz
Package/Case
VQFN
Common Mode Rejection Ratio
140dB
Gain Bandwidth Product
1MHz
Input Bias Current
500pA
Input Offset Voltage (Vos)
120uV
Input Resistance
100GR
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Amplifiers
3
Number of Channels
1
Number of Circuits
3
Number of Elements
1
Operating Supply Current
2.3mA
Operating Supply Voltage
36V
Output Current per Channel
18mA
Package Quantity
1500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
2V/µs
Supply Current
2.3mA
Voltage Gain
60dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8295ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices AD8295ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

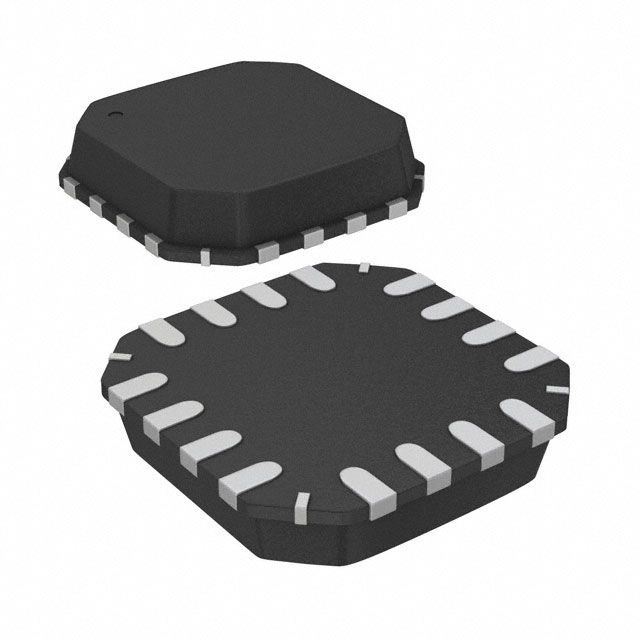

Product Images
