Variable Gain Amplifier with 150MHz bandwidth and 50dB gain. Features a 1500V/µs slew rate and 250ns settling time. Operates from a 2.7V to 6V supply with 20mA current consumption. Offers 1.2kΩ input resistance and 1mV input offset voltage. Packaged in a QSOP for surface mounting, with a -40°C to 85°C operating temperature range.
PackageQSOP
Current20mA
MountingSurface Mount
Power620mW
Quick Jump:
Technical Specifications
Analog Devices AD8330ARQZ technical specifications.
General
| -3db Bandwidth | 150MHz |
| Bandwidth | 150MHz |
| Package/Case | QSOP |
| Common Mode Rejection Ratio | 55dB |
| Gain | 50dB |
| Gain Bandwidth Product | 150MHz |
| Height | 1.65mm |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 1mV |
| Input Resistance | 1.2kR |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 620mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 6V |
| Package Quantity | 98 |
| Packaging | Rail/Tube |
| Power Dissipation | 620mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Settling Time | 250ns |
| Slew Rate | 1500V/µs |
| Supply Current | 20mA |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8330ARQZ Datasheet
Download the complete datasheet for Analog Devices AD8330ARQZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

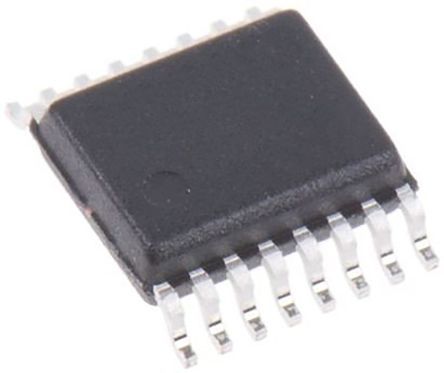

Product Images
