General-purpose, DC-coupled VGA with a 115MHz -3dB bandwidth and 80MHz gain bandwidth product. Features dual amplifiers, a 62dB voltage gain, and a 550V/µs slew rate. Operates from a 3V to 12V dual supply with 25mA supply current. Packaged in an LFCSP EP with tin, matte contact plating, suitable for surface mounting. Extended operating temperature range from -55°C to +85°C.
PackageLFCSP EP
Current25mA
Resistance900kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8336ACPZ-WP technical specifications.
General
-3db Bandwidth
115MHz
Bandwidth
115MHz
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Gain Bandwidth Product
80MHz
Height
0.8mm
Input Bias Current
725nA
Input Offset Voltage (Vos)
600uV
Input Resistance
900kR
Lead Free
Contains Lead
Length
4mm
Max Dual Supply Voltage
12V
Min Dual Supply Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.12W
Max Supply Voltage
12V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
1
Number of Elements
1
Operating Supply Current
25mA
Operating Supply Voltage
5V
Output Current per Channel
20mA
Package Quantity
64
Packaging
Tray
Power Dissipation
672mW
Power Supply Rejection Ratio (PSRR)
40dB
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
900kR
Response Time
300ns
RoHS Compliant
Yes
Series
X-AMP®
Slew Rate
550V/µs
Supply Current
25mA
Voltage Gain
62dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8336ACPZ-WP Datasheet
Download the complete datasheet for Analog Devices AD8336ACPZ-WP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

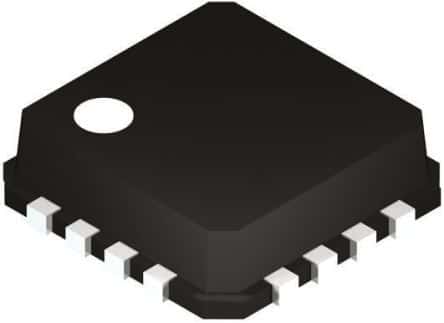

Product Images
