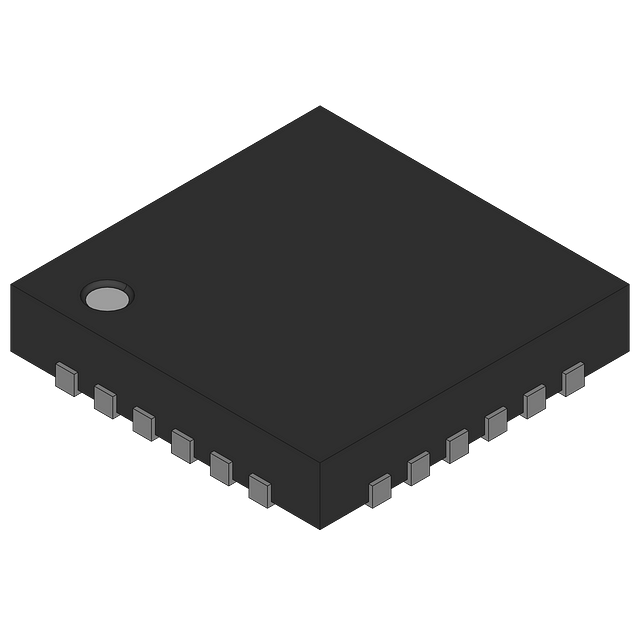

The AD8340ACPZ-WP is a 5V RF cellular IC packaged in a LFCSP EP with a maximum power dissipation of 825mW. It is designed for surface mount applications. The device operates at a nominal supply current of 130mA and a maximum supply current of 150A. The IC is compliant with RoHS regulations and is packaged in a tray. It has a test frequency of 880MHz and a thickness of 850um.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD8340ACPZ-WP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD8340ACPZ-WP technical specifications.
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Lead Free | Contains Lead |
| Length | 3.75mm |
| Max Power Dissipation | 825mW |
| Max Supply Current | 150A |
| Mount | Surface Mount |
| Nominal Supply Current | 130mA |
| Operating Supply Current | 130mA |
| Operating Supply Voltage | 5V |
| P1dB | 11dBm |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Test Frequency | 880MHz |
| Thickness | 850um |
| Width | 4mm |
| RoHS | Compliant |
