RF Vector Modulator 1.5 GHz TO 2.4 GHz
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD8341ACPZ-WP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

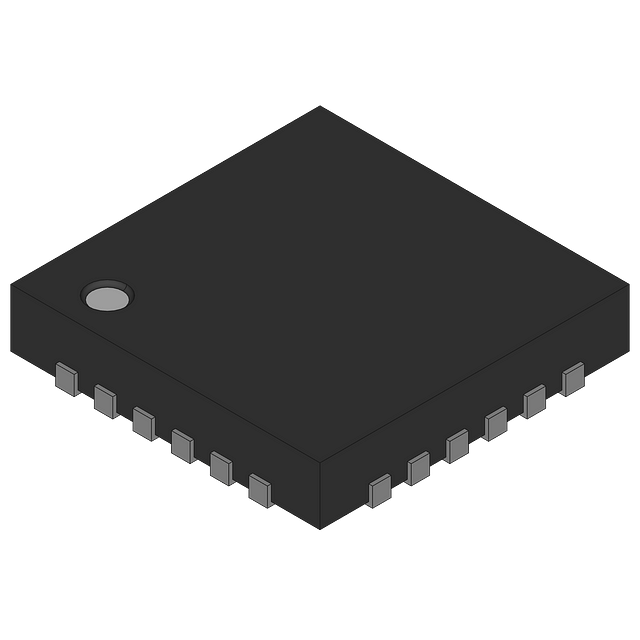

Analog Devices AD8341ACPZ-WP technical specifications.
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Lead Free | Contains Lead |
| Length | 3.75mm |
| Max Power Dissipation | 825mW |
| Max Supply Current | 145A |
| Mount | Surface Mount |
| Nominal Supply Current | 125mA |
| Operating Supply Current | 125mA |
| Operating Supply Voltage | 5V |
| P1dB | 8.5dBm |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Test Frequency | 1.9GHz |
| Thickness | 850um |
| Width | 4mm |
| RoHS | Compliant |
