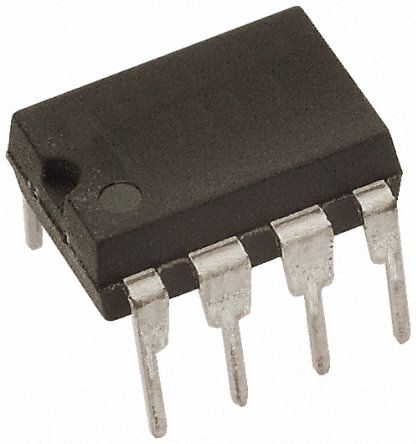

4-Bit Analog Multiplier IC, 500MHz, PDIP, Through Hole

Analog Devices

AD834JNZ

Name: AD834JNZ Analog Devices
Brand: Analog Devices
SKU: AD834JNZ

4-Bit Analog Multiplier IC, 500MHz, PDIP, Through Hole

4-bit analog multiplier IC featuring a 500MHz bandwidth and 2% accuracy. This dual-supply device operates from 4V to 9V, with a typical supply current of 35mA. It is housed in an 8-pin PDIP package for through-hole mounting. The component offers a high-level output current of 4mA and a maximum power dissipation of 500mW.

Frequency500MHz

PackagePDIP

Current28mA

MountingThrough Hole

Quick Jump:

Technical Specifications

Analog Devices AD834JNZ technical specifications.

General

-3db Bandwidth	500MHz
Accuracy	2%
Package/Case	PDIP
Contact Plating	Tin, Matte
Dual Supply Voltage	5V
Height	3.43mm
High Level Output Current	4mA
Lead Free	Contains Lead
Length	9.27mm
Low Level Output Current	4mA
Max Dual Supply Voltage	9V
Min Dual Supply Voltage	4V
Max Frequency	500MHz
Max Input Voltage	1V
Max Operating Temperature	70°C
Min Operating Temperature	0°C
Max Power Dissipation	500mW
Max Supply Voltage	9V
Min Supply Voltage	4V
Mount	Through Hole
Number of Amplifiers	2
Number of Bits	4
Number of Circuits	1
Number of Elements	1
Operating Supply Current	35mA
Output Current	4mA
Output Voltage	9V
Package Quantity	50
Packaging	Rail/Tube
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Supply Current	28mA
Width	7.24mm
