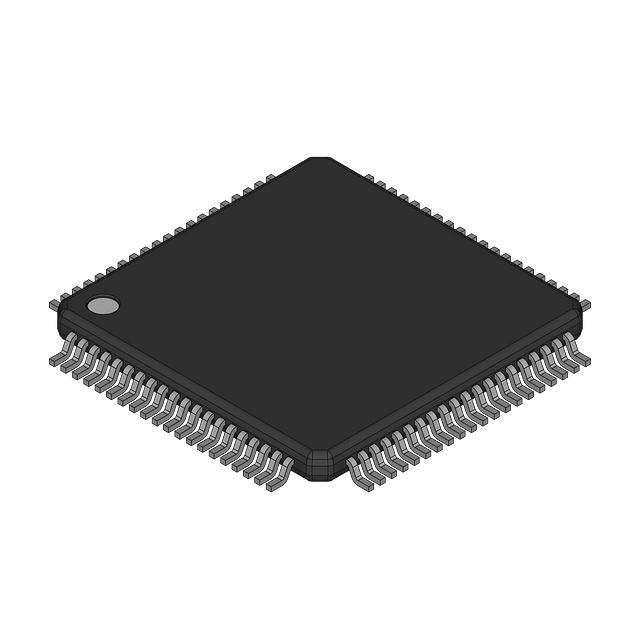

The AD8387JSVZ is a TQFP-80 packaged LCD driver from Analog Devices, operating within a temperature range of 0-85°C. It features a maximum supply voltage of 18V and a nominal supply current of 100mA. The device is designed for surface mount applications and is compliant with RoHS standards. The AD8387JSVZ has a sampling rate of 110MS/s and a resolution of 12 bits.
Checking distributor stock and pricing after the page loads.
Analog Devices AD8387JSVZ technical specifications.
| Package/Case | TQFP |
| Contact Plating | Tin, Matte |
| Display Type | LCD |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 100mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 11V |
| Mount | Surface Mount |
| Nominal Supply Current | 100mA |
| Operating Supply Current | 100mA |
| Output Current | 100mA |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 110MS/s |
| Series | DecDriver™ |
| Slew Rate | 420V/µs |
| RoHS | Compliant |
No datasheet is available for this part.
