Analog Devices
AD8534ARU
IC QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14, Operational Amplifier
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8534ARU technical specifications.
General
Package/Case
TSSOP
Common Mode Rejection Ratio
38dB
Input Bias Current
50pA
Input Offset Voltage (Vos)
25mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Power Supply Rejection Ratio (PSRR)
45dB
RoHS Compliant
No
Slew Rate
5V/µs
Technology
CMOS
Unity Gain Bandwidth Product
3MHz
Voltage Gain
98.06dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD8534ARU Datasheet
Download the complete datasheet for Analog Devices AD8534ARU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

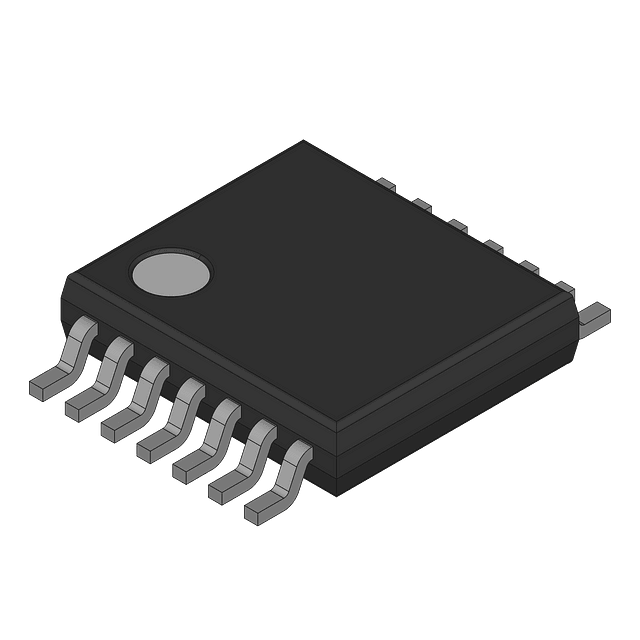

Product Images
