Dual operational amplifier featuring Rail-to-Rail Input and Output (RRIO) operation. This precision CMOS amplifier offers a 10MHz gain bandwidth product and a low input bias current of 1pA. Achieving 85dB common mode rejection and 95dB power supply rejection, it operates from a 2.7V to 5.5V supply. The device boasts a low input voltage noise density of 8nV/√Hz and a high voltage gain of 120dB, packaged in a compact MSOP.
Frequency1kHz
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices AD8606ARMZ-R7 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
85dB
Dual Supply Voltage
5V
Gain Bandwidth Product
10MHz
Height
0.95mm
Input Bias Current
1pA
Input Capacitance
8.8pF
Input Offset Voltage (Vos)
300uV
Input Voltage Noise Density
8nV/sqrt Hz
Lead Free
Contains Lead
Length
3.2mm
Max Frequency
1kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2.4mA
Output Current per Channel
80mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
95dB
Quiescent Current
1.2mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
DigiTrim®
Settling Time
1us
Slew Rate
5V/µs
Technology
CMOS
Unity Gain Bandwidth Product
10MHz
Voltage Gain
120dB
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8606ARMZ-R7 Datasheet
Download the complete datasheet for Analog Devices AD8606ARMZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

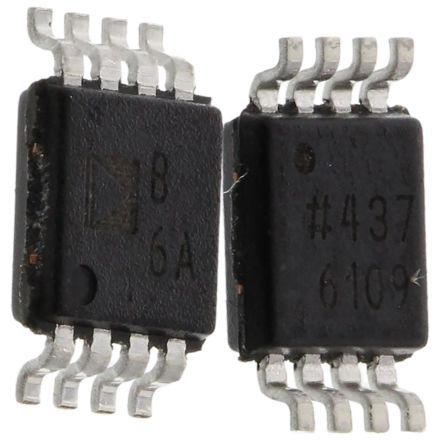

Product Images
