12-channel, 8-bit digital-to-analog converter (DAC) with a 1.7MS/s conversion rate. Features SPI serial interface, unipolar voltage output, and a separate VREFL input. Offers 1.5LSB integral nonlinearity and 1LSB full-scale error. Operates from a 2.7V to 5.5V supply voltage with a maximum power dissipation of 20mW. Suitable for applications requiring precise voltage trimming and power shutdown functionality.
PackageN
Power20mW
Quick Jump:
Technical Specifications
Analog Devices AD8804ANZ technical specifications.
General
| Package/Case | N |
| Contact Plating | Tin, Matte |
| Conversion Rate | 1.7MS/s |
| Differential Output | No |
| Full Scale Error | 1LSB |
| Height | 3.3mm |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Contains Lead |
| Length | 26.16mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 0uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 0uV |
| Max Power Dissipation | 20mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 8 |
| Number of Channels | 12 |
| Number of Converters | 12 |
| Number of D/A Converters | 12 |
| Number of DAC Channels | 12 |
| Operating Supply Voltage | 5V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Power Dissipation | 20mW |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 1.7MS/s |
| Series | TrimDAC® |
| Settling Time | 600ns |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8804ANZ Datasheet
Download the complete datasheet for Analog Devices AD8804ANZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

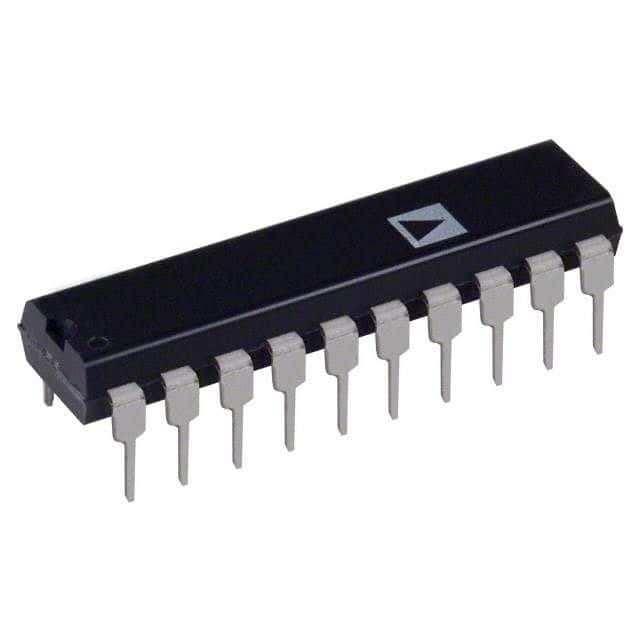

Product Images
