Dual 16-bit digital-to-analog converter (DAC) with a 1200 MS/s conversion rate. Features differential outputs and supports LVDS, parallel, and serial interfaces. Operates with a 3.3V supply voltage and offers a 20ns settling time. Housed in an LFCSP EP package with tin, matte contact plating. Integral nonlinearity is 3.7 LSB, with a maximum power dissipation of 1.2W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9146BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

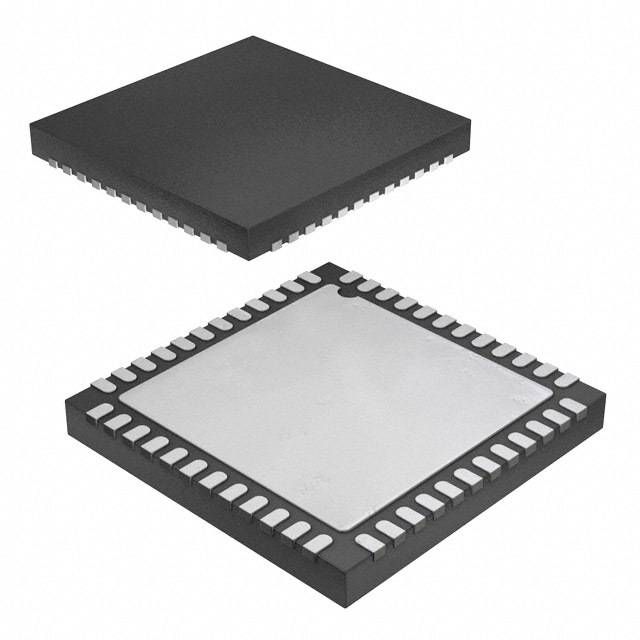

Analog Devices AD9146BCPZ technical specifications.
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 1200MS/s |
| Differential Output | Yes |
| Height | 0.75mm |
| Integral Nonlinearity (INL) | 3.7LSB |
| Interface | LVDS, Parallel, Serial |
| Lead Free | Contains Lead |
| Length | 7.1mm |
| Max Input Voltage | 1.2V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.2W |
| Max Supply Voltage | 3.47V |
| Min Supply Voltage | 3.13V |
| Number of Bits | 16 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of D/A Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Output Polarity | Unipolar |
| Package Quantity | 260 |
| Packaging | Tray |
| Power Dissipation | 1.2W |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 1200MS/s |
| Series | TxDAC+® |
| Settling Time | 20ns |
| Width | 7.1mm |
| RoHS | Compliant |
