Quad 16-bit, 1GS/s Digital-to-Analog Converter (DAC) featuring a 1GS/s conversion rate and 16-bit resolution. This device offers four DAC channels with differential outputs and supports LVDS, SPI, Serial, and Parallel interfaces. Operating supply voltage is 3.3V, with a range of 1.71V to 3.47V. Integral nonlinearity is 3.7 LSB, and settling time is 20µs. Contact plating includes copper, tin, and silver, with a maximum power dissipation of 2.22W.
Power3W
Quick Jump:
Technical Specifications
Analog Devices AD9148BBCZRL technical specifications.
General
Contact Plating
Copper, Tin, Silver
Conversion Rate
1GS/s
Differential Output
Yes
Integral Nonlinearity (INL)
3.7LSB
Interface
LVDS, SPI, Serial, Parallel
Lead Free
Contains Lead
Max Input Voltage
1.2V
Min Input Voltage
1.2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.22W
Max Supply Voltage
3.47V
Min Supply Voltage
1.71V
Number of Bits
16
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
3W
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1GS/s
Series
TxDAC+®
Settling Time
20us
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9148BBCZRL Datasheet
Download the complete datasheet for Analog Devices AD9148BBCZRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

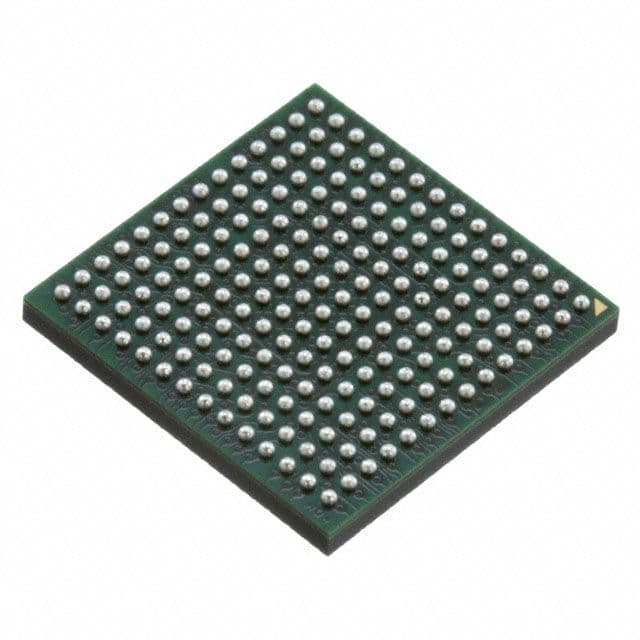

Product Images
