Quad, 10-bit, 40 MSPS serial LVDS analog-to-digital converter. Features 4 analog inputs with differential input type and unipolar polarity. Achieves 0.4 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL). Operates with a 1.8V supply, consuming 295mW of power. Offers a Signal-to-Noise Ratio (SNR) of 61.2 dB. Packaged in tape and reel for 750 units.
PolarityUnipolar
Power295mW
Quick Jump:
Technical Specifications
Analog Devices AD9219ABCPZRL7-40 technical specifications.
General
Differential Nonlinearity
0.4LSB
Input Capacitance
7pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
0.4LSB
Interface
LVDS
Lead Free
Contains Lead
Max Input Voltage
1V
Min Input Voltage
1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
313mW
Number of A/D Converters
4
Number of Analog Inputs
4
Number of Bits
10
Number of Channels
4
Number of Converters
4
Number of Inputs
4
Package Quantity
750
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
295mW
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
40000000S/s
Signal to Noise Ratio (SNR)
61.2dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9219ABCPZRL7-40 Datasheet
Download the complete datasheet for Analog Devices AD9219ABCPZRL7-40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

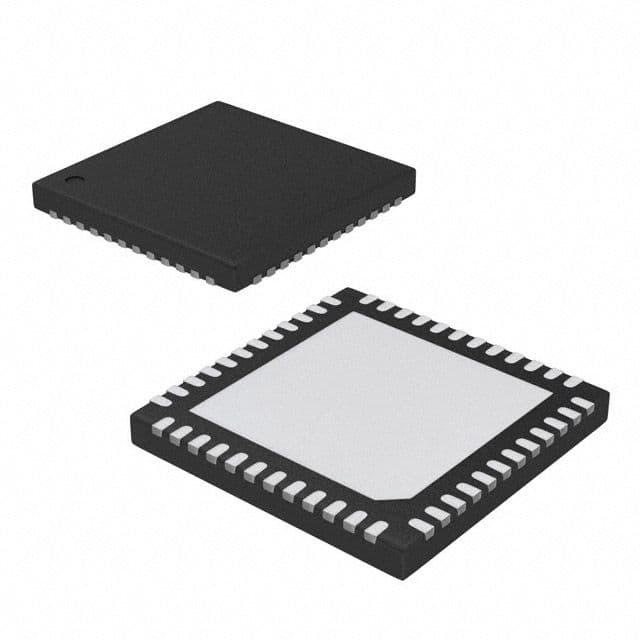

Product Images
