12-bit, 250 MSPS Analog-to-Digital Converter (ADC) featuring a differential input type and LVDS interface. Achieves 1 LSB Integral Nonlinearity (INL) and 0.6 LSB Differential Nonlinearity (DNL) with a Signal-to-Noise Ratio (SNR) of 64.6 dB. Operates from a single 1.8V supply with a maximum power dissipation of 434mW. Packaged in an 8mm x 8mm LFCSP EP with tin, matte contact plating, suitable for operation between -40°C and 85°C.
PackageLFCSP EP
Current181mA
PolarityUnipolar
Power434mW
Quick Jump:
Technical Specifications
Analog Devices AD9230BCPZ-250 technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Differential Nonlinearity
0.6LSB
Height
0.83mm
Input Capacitance
2pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1LSB
Interface
LVDS
Lead Free
Contains Lead
Length
8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
434mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
11
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
1.8V
Package Quantity
260
Packaging
Tray
Polarity
Unipolar
Power Consumption
434mW
Power Dissipation
434mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
250000000S/s
Signal to Noise Ratio (SNR)
64.6dB
Supply Current
181mA
Supply Type
Single
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9230BCPZ-250 Datasheet
Download the complete datasheet for Analog Devices AD9230BCPZ-250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

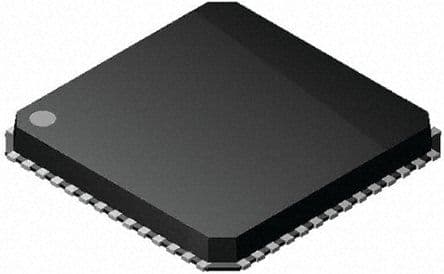

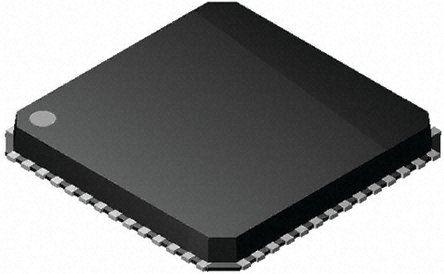

Product Images
