Dual 12-bit Analog-to-Digital Converter (ADC) offering a sampling rate of 40 MSPS. Features 2 analog inputs with a unipolar, single supply configuration. Achieves 70.4dB Signal-to-Noise Ratio (SNR) and exhibits Differential Nonlinearity of 0.8 LSB and Integral Nonlinearity (INL) of 1.4 LSB. Operates within a temperature range of -40°C to 85°C with a maximum power dissipation of 330mW. Utilizes a parallel interface and is supplied in tape and reel packaging.
PolarityUnipolar
Power360mW
Quick Jump:
Technical Specifications
Analog Devices AD9238BCPZRL-40 technical specifications.
General
Differential Nonlinearity
0.8LSB
Input Capacitance
7pF
Integral Nonlinearity (INL)
1.4LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
1V
Min Input Voltage
500mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
330mW
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
360mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
40000000S/s
Signal to Noise Ratio (SNR)
70.4dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9238BCPZRL-40 Datasheet
Download the complete datasheet for Analog Devices AD9238BCPZRL-40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

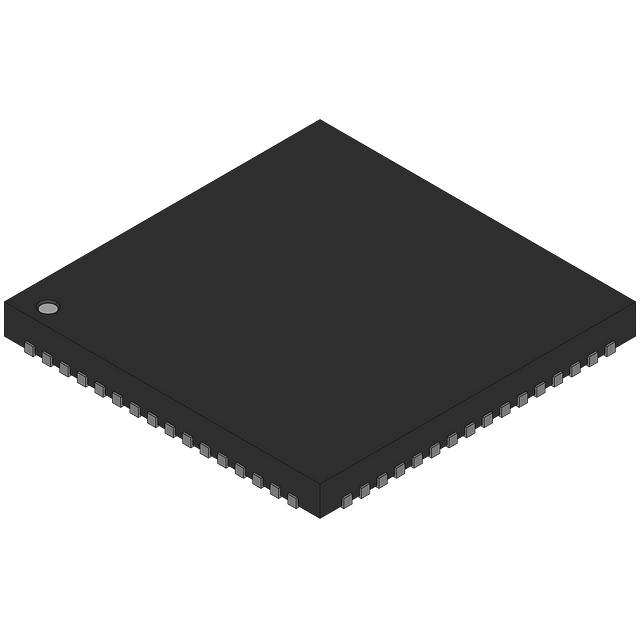

Product Images
