Dual 12-bit Analog-to-Digital Converter (ADC) offering sampling rates up to 65 MSPS. Features include 1.75 LSB Integral Nonlinearity (INL) and 1 LSB Differential Nonlinearity (DNL). Operates with a single supply voltage, accepting analog inputs between 500mV and 1V. The device provides a parallel interface and is housed in an LQFP package. Maximum power dissipation is 600mW, with a typical power consumption of 640mW. Operating temperature range spans from -40°C to 85°C.
PackageLQFP
PolarityUnipolar
Power640mW
Quick Jump:
Technical Specifications
Analog Devices AD9238BSTZRL-65 technical specifications.
General
Package/Case
LQFP
Differential Nonlinearity
1LSB
Input Capacitance
7pF
Integral Nonlinearity (INL)
1.75LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
1V
Min Input Voltage
500mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
640mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
65000000S/s
Signal to Noise Ratio (SNR)
70.4dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9238BSTZRL-65 Datasheet
Download the complete datasheet for Analog Devices AD9238BSTZRL-65 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

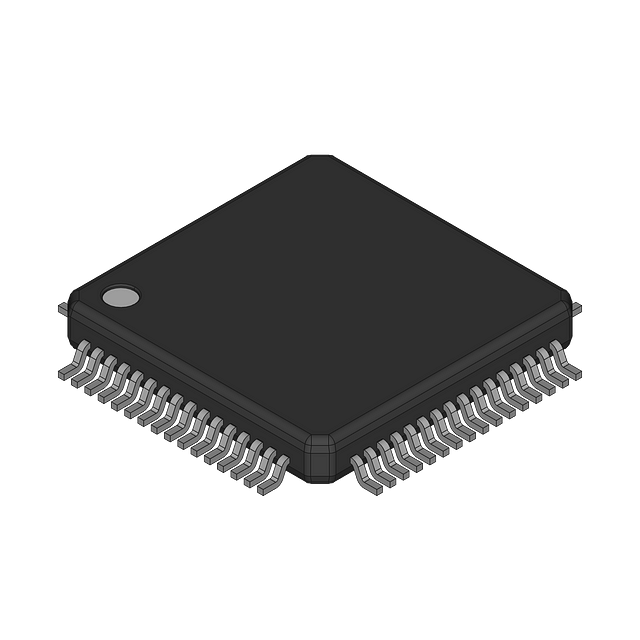

Product Images
