Quad 12-bit analog-to-digital converter (ADC) with serial output, offering sampling rates up to 210 MSPS. Features include 1.3 LSB integral nonlinearity and 0.6 LSB differential nonlinearity. Operates from a 1.8V supply voltage with a nominal current draw of 610mA. Supports SPI interface and has a maximum input voltage of 1.25V. Packaged in a 168-lead tray with tin, matte contact plating.
PolarityUnipolar
Power1.298W
Quick Jump:
Technical Specifications
Analog Devices AD9239BCPZ-210 technical specifications.
General
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 0.6LSB |
| Input Capacitance | 2pF |
| Integral Nonlinearity (INL) | 1.3LSB |
| Interface | SPI, Serial |
| Lead Free | Contains Lead |
| Max Input Voltage | 1.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.526W |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Nominal Supply Current | 610mA |
| Number of A/D Converters | 4 |
| Number of Analog Inputs | 4 |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 168 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Consumption | 1.298W |
| Power Dissipation | 1.298W |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 210000000S/s |
| Signal to Noise Ratio (SNR) | 64.5dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9239BCPZ-210 Datasheet
Download the complete datasheet for Analog Devices AD9239BCPZ-210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

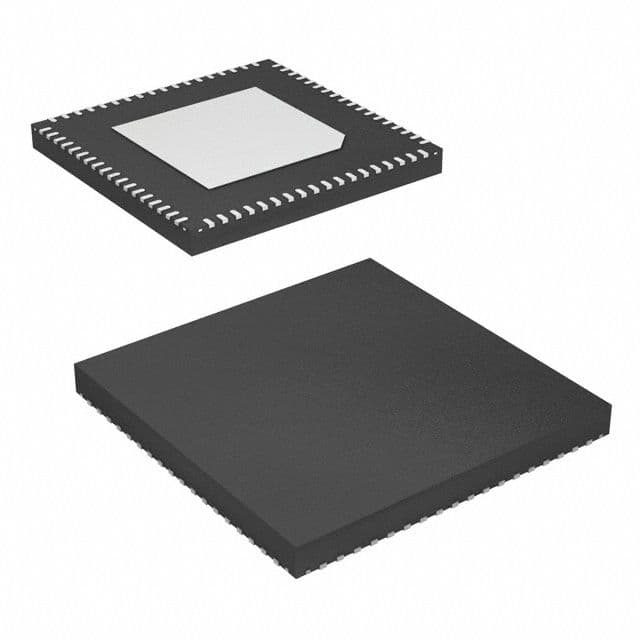

Product Images
