Quad 14-bit Analog-to-Digital Converter (ADC) with a sampling rate of 125 MSPS. Features differential inputs with a maximum input voltage of 1V and an input capacitance of 3.5pF. Offers an LVDS interface and a resolution of 14 bits. Operates at 1.8V supply voltage with a maximum power dissipation of 457mW. Integral Nonlinearity is 4 LSB, and Differential Nonlinearity is -1 LSB.
Current183mA
Quick Jump:
Technical Specifications
Analog Devices AD9253BCPZ-125 technical specifications.
General
Contact Plating
Tin, Matte
Differential Nonlinearity
-1LSB
Height
0.75mm
Input Capacitance
3.5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
4LSB
Interface
LVDS
Lead Free
Contains Lead
Length
7.1mm
Max Input Voltage
1V
Min Input Voltage
1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
457mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Number of A/D Converters
4
Number of Analog Inputs
4
Number of Bits
14
Number of Channels
4
Number of Converters
4
Number of Inputs
4
Operating Supply Current
194mA
Operating Supply Voltage
1.8V
Package Quantity
260
Packaging
Tray
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
125000000S/s
Signal to Noise Ratio (SNR)
75.4dB
Supply Current
183mA
Supply Type
Analog, Digital
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9253BCPZ-125 Datasheet
Download the complete datasheet for Analog Devices AD9253BCPZ-125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

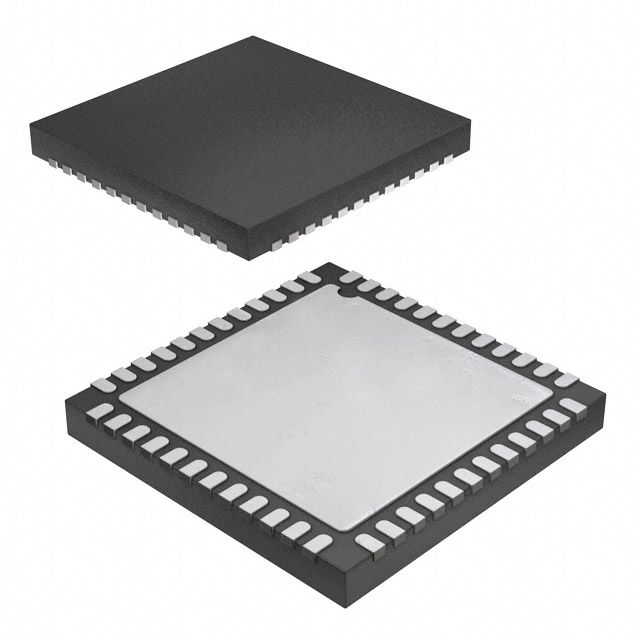

Product Images
