Quad, 14-bit Analog-to-Digital Converter (ADC) with a sampling rate of 80 MSPS. Features differential inputs with a maximum input voltage of 1V and a minimum input voltage of 1V. Offers a Signal-to-Noise Ratio (SNR) of 75.4dB and Integral Nonlinearity (INL) of 4LSB. Operates with a supply voltage of 1.8V and a nominal supply current of 194mA. Packaged in Tape and Reel with Tin, Matte contact plating.
Quick Jump:
Technical Specifications
Analog Devices AD9253BCPZRL7-80 technical specifications.
General
Contact Plating
Tin, Matte
Differential Nonlinearity
-1LSB
Input Capacitance
3.5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
4LSB
Interface
LVDS
Lead Free
Contains Lead
Max Input Voltage
1V
Min Input Voltage
1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
405mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Nominal Supply Current
194mA
Number of A/D Converters
4
Number of Analog Inputs
4
Number of Bits
14
Number of Channels
4
Number of Converters
4
Number of Inputs
4
Operating Supply Current
194mA
Operating Supply Voltage
1.8V
Package Quantity
750
Packaging
Tape and Reel
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
80000000S/s
Signal to Noise Ratio (SNR)
75.4dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9253BCPZRL7-80 Datasheet
Download the complete datasheet for Analog Devices AD9253BCPZRL7-80 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

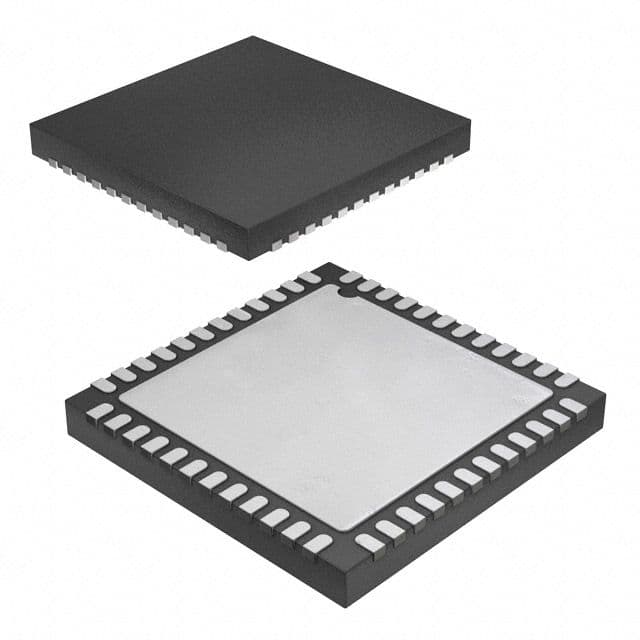

Product Images
