Octal LNA/VGA/AAF/ADC and Crosspoint Switch featuring 12-bit resolution and an 80MS/s conversion rate. This general-purpose integrated circuit offers 8 channels with a 65dB Signal-to-Noise Ratio. It operates with an analog and digital supply type, ranging from 1.7V to 3.6V, with a typical 3V operating voltage. The component is housed in a 14mm x 14mm x 1mm TQFP package with tin, matte contact plating. It supports LVDS interface and has a maximum input voltage of 1V.
PackageTQFP
Quick Jump:
Technical Specifications
Analog Devices AD9272BSVZ-65 technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Conversion Rate
80MS/s
Height
1mm
Input Capacitance
22pF
Input Type
SINGLE-ENDED
Interface
LVDS
Lead Free
Contains Lead
Length
14mm
Max Input Voltage
1V
Min Input Voltage
1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.78W
Max Supply Voltage
3.6V
Min Supply Voltage
1.7V
Number of A/D Converters
8
Number of Channels
8
Number of Converters
8
Operating Supply Voltage
3V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
65000000S/s
Signal to Noise Ratio (SNR)
65dB
Supply Type
Analog, Digital
Type
General Purpose
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9272BSVZ-65 Datasheet
Download the complete datasheet for Analog Devices AD9272BSVZ-65 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

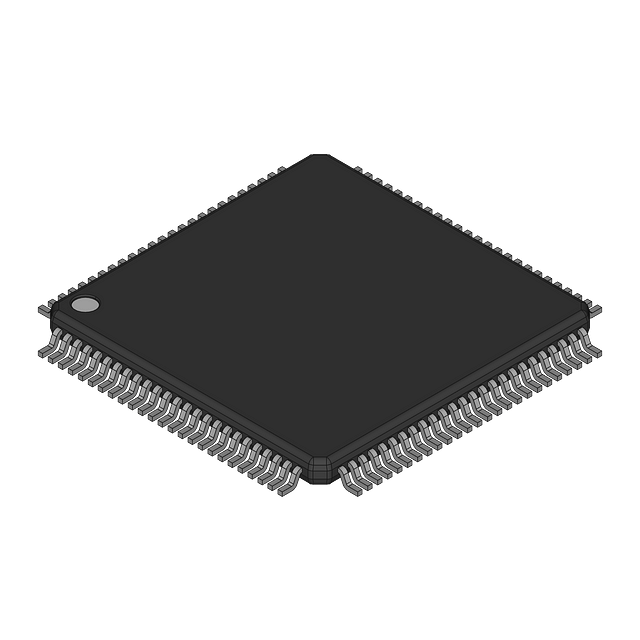

Product Images
