Octal LNA/VGA/AAF/12-Bit ADC and CW I/Q Demodulator featuring an 80MS/s conversion rate and 12-bit resolution. This specialized IC offers 8 single-ended input channels with an LVDS interface. Operating within a 1.7V to 1.9V supply voltage range, it boasts a 70dB signal-to-noise ratio and a maximum power dissipation of 1.78W. Packaged in TQFP with tin matte contact plating, this RoHS compliant component operates from -40°C to 85°C.
PackageTQFP
Power1.78W
Quick Jump:
Technical Specifications
Analog Devices AD9276BSVZ technical specifications.
General
| Package/Case | TQFP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 80MS/s |
| Input Type | SINGLE-ENDED |
| Interface | LVDS |
| Lead Free | Contains Lead |
| Max Input Voltage | 1V |
| Min Input Voltage | 1V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.78W |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Package Quantity | 90 |
| Packaging | Tray |
| Power Dissipation | 1.78W |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 80MS/s |
| Signal to Noise Ratio (SNR) | 70dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9276BSVZ Datasheet
Download the complete datasheet for Analog Devices AD9276BSVZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

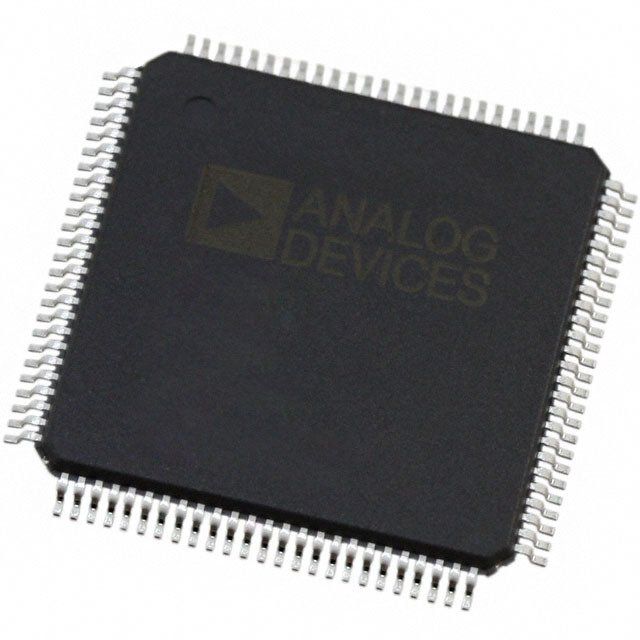

Product Images
