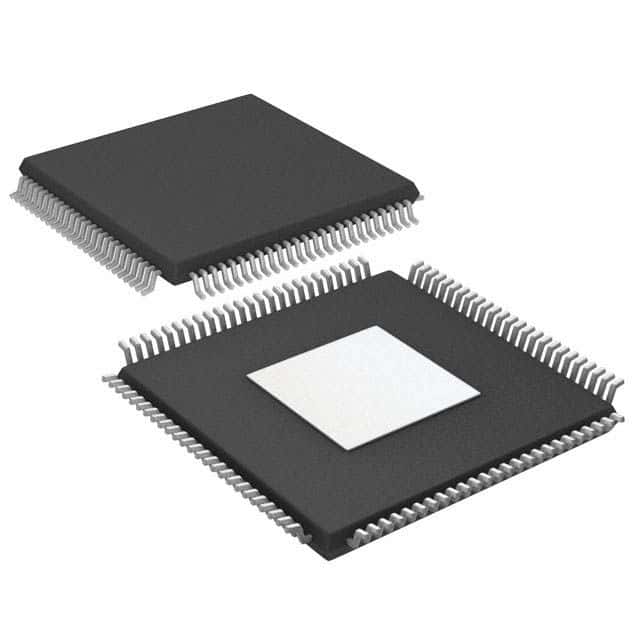

12-bit, 170 MSPS Analog-to-Digital Converter (ADC) featuring a 3.3V operating supply voltage. This unipolar converter offers a 65dB Signal-to-Noise Ratio (SNR) and a sampling rate of 170 MSPS. It boasts a differential nonlinearity of 1.5 LSB and integral nonlinearity of 2.25 LSB. The device utilizes an LVDS interface and is housed in a TQFP package with tin, matte contact plating. Maximum power dissipation is 1.7W, with typical power consumption at 1.29W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9430BSVZ-170 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 1.5LSB |
| Height | 1mm |
| Input Capacitance | 5pF |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2.25LSB |
| Interface | LVDS |
| Lead Free | Contains Lead |
| Length | 14mm |
| Max Input Voltage | 1.3V |
| Min Input Voltage | 1.15V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.7W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Consumption | 1.29W |
| Power Dissipation | 1.29W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 170000000S/s |
| Signal to Noise Ratio (SNR) | 65dB |
| Supply Current | 335mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Width | 14mm |
| RoHS | Compliant |
