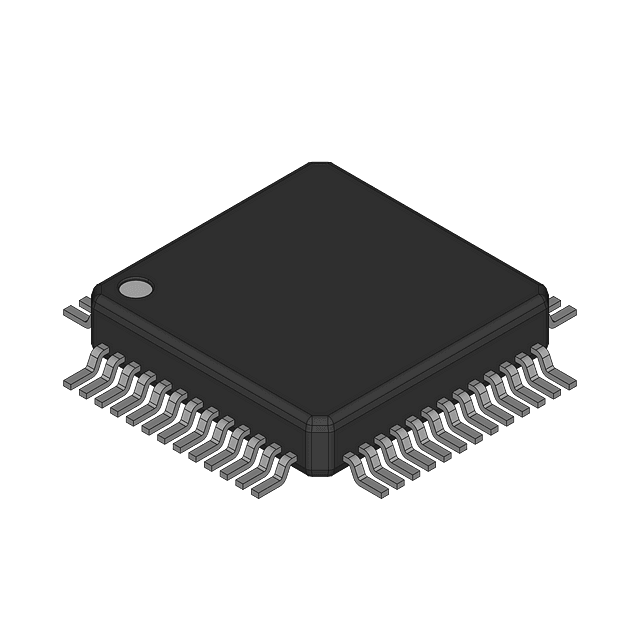

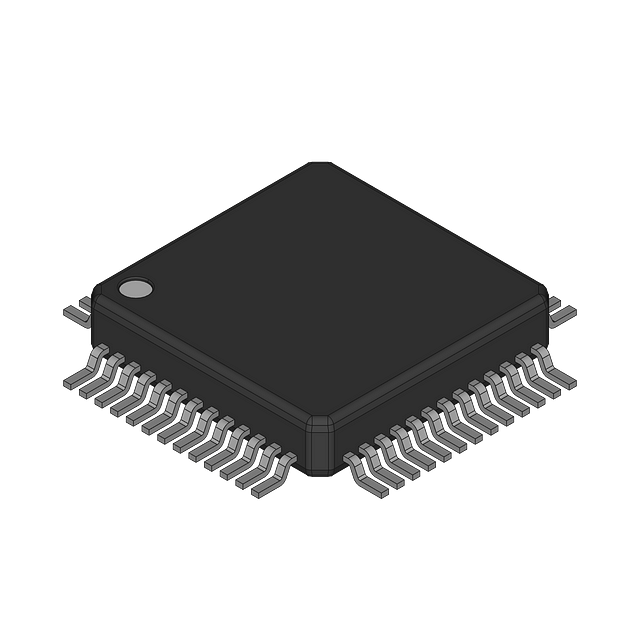

12-bit, 105 MSPS Analog-to-Digital Converter (ADC) featuring a differential input type and a parallel interface. Achieves 1.5 LSB Integral Nonlinearity (INL) and 1 LSB Differential Nonlinearity (DNL). Operates with a 5V supply voltage, consuming 850mW of power. Encased in an LQFP package with dimensions of 10mm x 10mm x 1.4mm. Offers a signal-to-noise ratio of 67.5dB and supports a maximum input voltage of 2.6V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9432BSTZ-105 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD9432BSTZ-105 technical specifications.
| Package/Case | LQFP |
| Differential Nonlinearity | 1LSB |
| Height | 1.4mm |
| Input Capacitance | 4pF |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Voltage | 2.6V |
| Min Input Voltage | 2.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.1W |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 160 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Consumption | 850mW |
| Power Dissipation | 1.1W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 105000000S/s |
| Signal to Noise Ratio (SNR) | 67.5dB |
| Supply Current | 170mA |
| Termination | SMD/SMT |
| Width | 10mm |
| RoHS | Compliant |
