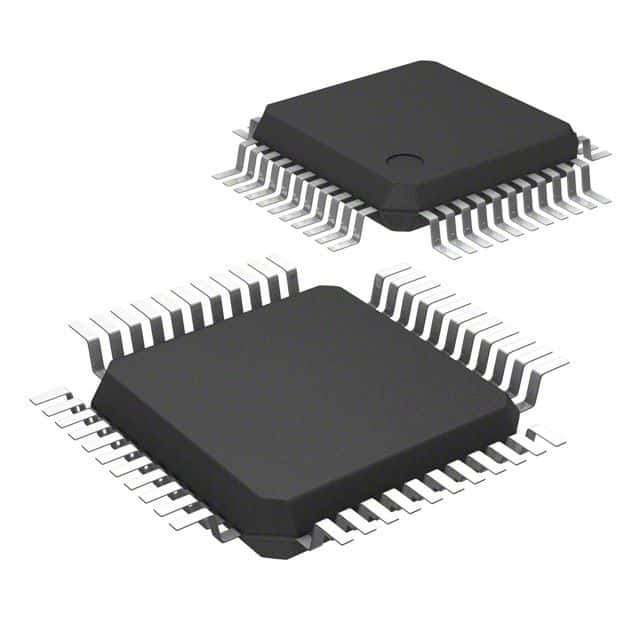

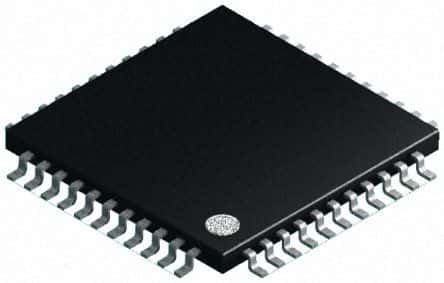

8-Bit, 250 MSPS Analog-to-Digital Converter (ADC) with a 1V maximum input voltage and 500mV minimum input voltage. Features differential input type, LVDS interface, and TTL output type. Operates from a 3.3V supply voltage with a power consumption of 590mW. Integral nonlinearity is 0.9 LSB and differential nonlinearity is 0.5 LSB. Packaged in a 10mm x 10mm x 1mm TQFP with tin, matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9480BSUZ-250 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD9480BSUZ-250 technical specifications.
| Package/Case | TQFP |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 0.5LSB |
| Height | 1mm |
| Input Capacitance | 4pF |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.9LSB |
| Interface | LVDS |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Voltage | 1V |
| Min Input Voltage | 500mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 698mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Output Type | TTL |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Consumption | 590mW |
| Power Dissipation | 698mW |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 250MS/s |
| Signal to Noise Ratio (SNR) | 47dB |
| Supply Current | 145mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Width | 10mm |
| RoHS | Compliant |
