14-output differential clock buffer and driver supporting CMOS, HSTL, LVDS, and LVPECL interfaces. Features a zero-delay PLL architecture with a maximum frequency of 3.1GHz. Operates from a 3.3V supply voltage with a maximum supply current of 75.8mA. Configurable via I2C and SPI interfaces. Packaged in a 72-pin LFCSP EP with dimensions of 10mm x 10mm x 0.95mm.
Frequency3.1GHz
PackageLFCSP EP
Current75.8mA
Quick Jump:
Technical Specifications
Analog Devices AD9523-1BCPZ technical specifications.
General
Package/Case
LFCSP EP
Frequency
3.1GHz
Height
0.95mm
Input
CMOS
Interface
I2C, SPI
Lead Free
Contains Lead
Length
10mm
Max Frequency
1GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
75.8mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Elements
2
Number of Inputs
2
Number of Outputs
14
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
75.8mA
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9523-1BCPZ Datasheet
Download the complete datasheet for Analog Devices AD9523-1BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

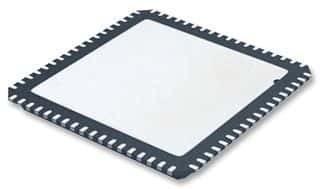

Product Images
